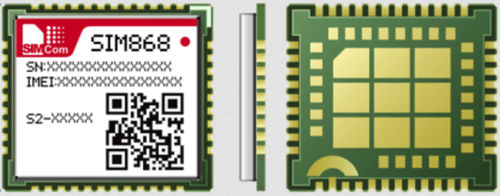

Embedded wireless module SIM868

USBGPRSGSM

SIM868 module is the complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS) technology for satellite navigation. It has strong extension capability with abundant interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's applications. Product Advantages ● LCC+LGA form factor with abundant interfaces ● Abundant software functions: DTMF, MMS, MUX ● Low Power consumption ● Embedded TCP/UDP protocols ● Multi-constellation GNSS receiver support: GPS, GLONASS, BeiDou Product Details General features • Frequency Bands: 850/900/1800/1900MHz • GPRS multi-slot class: 12/10 • Dimensions: 17.6*15.7*2.3mm • Weight: 1.5±0.1g • Supply Voltage: 3.4V ~ 4.4V • Operation temperature: -40℃ ~ +85℃ • Compliant GSM phase 2/2+: Class 4 (2W @ 850/900MHz) • Compliant GSM phase 2/2+: Class 1 (1W @ 1800/1900MHz) • Control via AT commands (3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands) • Low power consumption • GPRS mobile station class B Specifications for GPRS Data • PBCCH support • Coding schemes CS 1, 2, 3, 4 • PPP-stack • USSD Specifications for SMS via GSM/GPRS • Point to point MO and MT • SMS cell broadcast • Text and PDU mode
