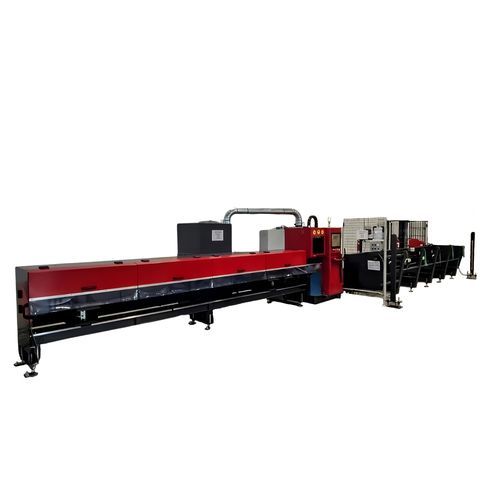

Fiber laser cutting and engraving machine LTS3 Bevel

3D laserfor metaltube

Overview
The LTS3 Bevel is a 3 kW tube laser cutting machine equipped with an adjustable 3D bevel head for beveling, inclined cuts and complex 3D processing on tubes and metal profiles. It is designed for industrial integration with optional automatic loading/unloading and nesting features to optimize material usage.

Key features

• 3 kW fiber laser source paired with a 3D adjustable bevel (Bevel) head
• Inclined cutting and bevel generation for weld preparation
• Interpolated axis control for complex three-dimensional operations
• 3D software with STEP import and automatic nesting
• Integrable inline loading and unloading systems (bundle/chain loaders, multi-length unloaders, belt/chain options)
• Precision and repeatability on angled cuts
• Configured for continuous industrial operation

Applications
Beveling and weld preparations on structural tubes, production of three-dimensional geometries on tubes and profiles, integration into automated production lines requiring nesting and material optimization.

Operational continuity & availability
The system is engineered for industrial production continuity with configuration options for extended availability (24/7) and integration into automated workflows to maintain high throughput.

Extras & integration

• Automatic loaders: bundle, chain or belt systems; multi-length feeding
• Unloaders: slides, rollers, multi-length discharge configurations
• Fume extractor and filtration units
• Chiller for source and head temperature control
• Compressed air supply (e.g. 15 bar) and process gas options
• CNC EtherCAT controller, Inovance drives and electrical panels
• Welding seam detection sensors, interchangeable nozzles and spare parts for Bevel head

Technical specifications

• Brand: Simec
• Model: LTS3 Bevel
• Laser source power: 3 kW (fiber)
• Bevel head: 3D adjustable bevel head (Bevel 3D)
• Cuttable thicknesses: approx. 1 - 6 [mm]
• Working length: approx. 1.5 - 6.1 [m] (configurable)
• Maximum remnant allowance: 100 [mm]
• Process gases: Air - N₂ - O₂ (depending on material and thickness)
• Software: 3D software with STEP import and automatic nesting
• Axis control: interpolated axis control for 3D operations
• Automation: integrable loading/unloading systems and automatic nesting
• Optional: fume extractor, chiller, welding seam sensor, CNC EtherCAT controller, Inovance drives
