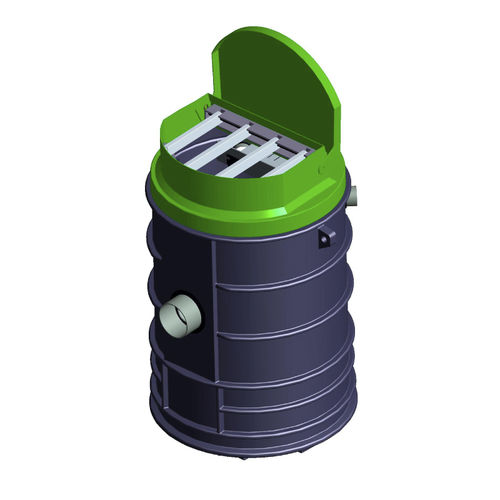

Sewage lifting unit 5160

This station is used for domestic wastewater including toilet water up to 200 PE. It is also suitable for rainwater. Domestic sewage lifting station equipped with : - 1 polyethylene tank with padlockable polyester cover, minimum useful volume 1310L- 1 tank bottom resistant to the water table with an integrated 100 mm concrete base- 1 male inlet in PVC Ø200, watertightness with porthole seal (drilled in the factory) as well as a flex-seal connection supplied- 1 male discharge outlet in PVC Ø63 ext- 1 stainless steel screen basket 304L with 39mm air gap- 2 single-phase pumps for charged water, 2 single-phase pumps for sewage, maximum 50mm solid body passage- 2 stainless steel 304L guide bars- 2 cast iron feet- 2 PVC F/F ball valves and DN 50 valves- 1 support for gallows (option)- 1 cable passage Ø100 ext- 1 anti-fall grid with independent bars (option)- 1 PVC male ventilation Ø100 ext- 1 control cabinet- PVC pressure pipes- level regulators
