Asynchronous motor EG SERIES380 VTEFCIP54
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous
- Voltage
- 380 V
- Configuration
- TEFC
- Protection class
- IP54, IP44
- Other characteristics
- high-efficiency, low-noise, low-vibration, energy-saving
- Power
Max.: 560 kW
(761.39 hp)Min.: 160 kW
(217.54 hp)- Intensity
Max.: 1,007.4 A
Min.: 324.6 A
- Torque
0.8 Nm, 1.8 Nm
(0.59005 ft.lb, 1.327612 ft.lb)- Rotational speed
595 rpm, 745 rpm, 990 rpm, 1,490 rpm
(3,738.4953 rad.min-1, 4,680.9731 rad.min-1, 6,220.3535 rad.min-1, 9,361.9461 rad.min-1)
Description

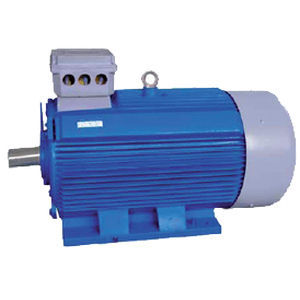

EG series TEFC three phase asynchronous motor (center height from 400mm to 450mm). The protection degree of the motor is of IP44/54 and the cooling method is of IC411.
The motor has such advantage as high efficiency, energy saving, low noise, lower vibration, light weight and reliable performance.
The structure and mounting type is of IMB3 with continuous duty (S1). The rated frequency is 50Hz and the rated voltage is 380V.
Other voltage requirements or special requirements should be negotiate with us before order is placed.
Catalogs
EG SERIES TEFC
4 Pages
