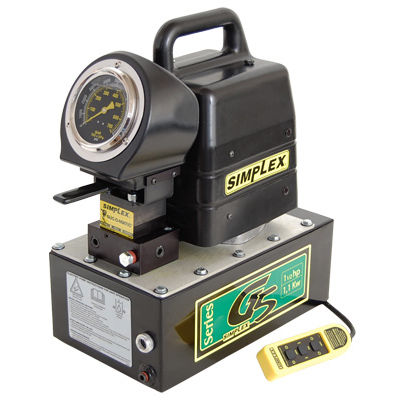

Electrically-powered hydraulic pump G5 series

Model # : G5 Series Name : Electric Power Pump Order # : Use Order Matrix Max. Pressure : 10000 psi 1st Stage Flow : 700 cu. in. / min. 2nd Stage Flow : 55 cu. in. / min. Motor : 1.5 hp Weight : 57 lbs. Description * Powered by a 115V - 60Hz, 1-1/2 hp permanent magnet motor (3,000 rpm); low startup voltage, draws 18 amps at full load (230V models available). * Equipped with a 15’ remote power controlled pendant. * High performance two-stage pump provides higher cross-over pressure for faster cycle times and equipment operation; 55 cubic inches / minute @ 10,000 PSI. Optional 3 stage for progressive force. * Precision designed valve offers offer reliability and secure load holding; external adjustable relief standard on all types. * Reservoirs available in 1.5 - 20 gallons; welded steel design. * Ideal for use with mid - large sized hydraulic cylinders or tools. * Best weight-to-performance ratio in its class, starting at 57 lbs.
