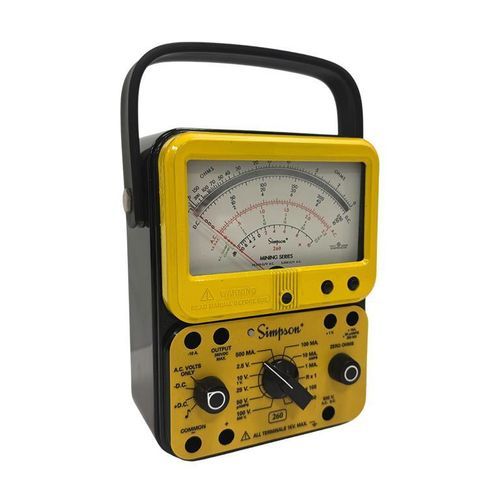

Analog multimeter Mining 260-8Pportableweather-resistantrugged
Add to favorites
Compare this product
Characteristics
- Display
- analog
- Form
- portable
- Protection level
- rugged, weather-resistant
- Applications
- industrial
- Other characteristics
- AC/DC, AC, DC
- Max DC voltage
Min.: 0.25 V
Max.: 500 V
- Max AC voltage
Min.: 2.5 V
Max.: 500 V
- Max DC current
Min.: 0.05 mA
Max.: 10,000 mA
- Max AC current
250 A
- Max resistance measure
Min.: 0 mOhm
Max.: 20 mOhm
- DC voltage precision
2 %
- AC voltage precision
3 %
- DC current precision
1.5 %, 2 %
- Length
3.1 in
- Width
5.5 in
- Height
7 in
- Weight
1.4 kg
(3.09 lb)
Description
Product Description
The Simpson Electric Mining 260-8P is an analog volt-ohm meter (VOM) engineered for the demanding conditions of mining and heavy industrial environments. Based on the trusted Simpson 260 platform, the Mining 260-8P pairs fast, intuitive analog readout with enhanced durability, moisture resistance and integrated LED illumination to support accurate measurements in low-light, dusty and damp locations. The instrument features a gasketed lens cover, reinforced phenolic housing and straightforward controls to aid technicians performing routine diagnostics and maintenance. Integrated continuity indicators, a front-mounted battery status indicator and a built-in LED flashlight help streamline troubleshooting on site.
Features and Benefits
Downloads
Technical Specifications
The Simpson Electric Mining 260-8P is an analog volt-ohm meter (VOM) engineered for the demanding conditions of mining and heavy industrial environments. Based on the trusted Simpson 260 platform, the Mining 260-8P pairs fast, intuitive analog readout with enhanced durability, moisture resistance and integrated LED illumination to support accurate measurements in low-light, dusty and damp locations. The instrument features a gasketed lens cover, reinforced phenolic housing and straightforward controls to aid technicians performing routine diagnostics and maintenance. Integrated continuity indicators, a front-mounted battery status indicator and a built-in LED flashlight help streamline troubleshooting on site.
Features and Benefits
- LED-illuminated dial for improved visibility in low-light conditions
- Moisture-resistant gasketed lens to protect against dust and particulates
- Built-in LED flashlight for hands-on field work
- LED and audible continuity indicators for rapid circuit verification
- Front-mounted battery charge indicator for quick status checks
- 35 measurement ranges covering AC/DC voltage, current and resistance
- Rugged reinforced phenolic housing designed for mining environments
- Built-in overload protection
- Simple, easy-to-use controls for fast operator use
- Includes batteries and test leads
- CE Certified
- Made in the USA
- 1-Year Warranty
Downloads
- Mining 260-8P Data Sheet (PDF)
Technical Specifications
- Platform: Simpson 260 analog meter
- Model: Mining 260-8P
- Illumination: LED-illuminated dial and built-in LED flashlight
- Environmental protection: moisture-resistant gasketed lens
- Housing: reinforced phenolic case
- Continuity: LED and audible indicators
- Battery indicator: front-mounted battery charge indicator
- Measurement ranges: 35 ranges covering AC/DC voltage, current and resistance
- Protection: built-in overload protection
- Accessories: includes batteries and test leads
- Certifications: CE Certified
- Origin: Made in the USA
- Warranty: 1-Year
