Welding hood MS1190

protectionpolypropylene

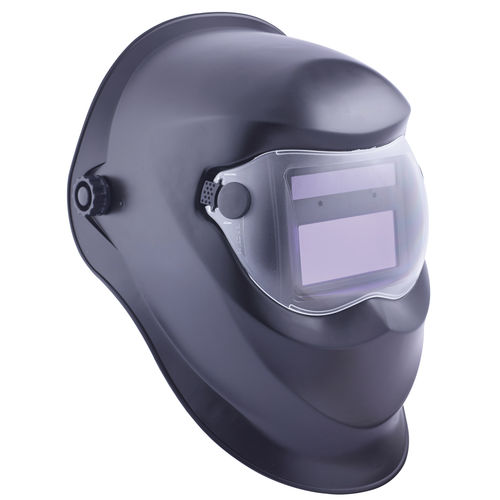

Opto-electronic welding hood. Moulded in rigid high-strength black polypropylene. A clear PC protective cover lens is secured to the front and rear frames. The frontal viewing window is equipped with a solar cell and filter for welding operations, in shades 4/9-13 (fixed shade 4, automatically variable shade ranging from 9 to 13). Response time 1/25,000 s. Interior field of vision 92 x 42 mm. Dimensions of filter 110 mm x 90 mm x 9 mm. 2 sensors. The polyethylene headband is provided with two lateral joints for the rotation of the hood-shield assembly, with a facility for the adjustment of the tightening torque using a nut and bolt system. Foam padding is attached to the front and rear of the head band. The two upper straps allow the adjustment of height by a system of spikes. Adjustment around the head is achieved by a rack and pinion system. Front spare polycarbonate lens: ACC1190E2
