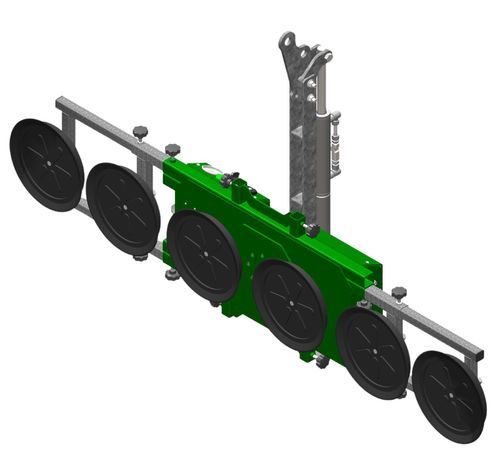

Glass plate vacuum lifter SL-VA-500

for flat partsfor sheetsadjustable

Description
SL-VA-500 is a vacuum transport system designed for the handling, transportation and on-site assembly of glass, ceramics and similar flat materials up to 500 kg. Its modular frame and extendable arms allow adaptation to narrow/long and wide/short panels, providing precise manual positioning and full orientation control.

Key features

• Equipped with a vacuum pump for secure load holding.
• Integrated safety system and cross-safety technology for on-site protection.
• Complies with TS EN 13155 standard.
• Suction cups: 290 mm diameter for reliable adherence to flat surfaces.
• Manual tilt: 0°–90° for flexible positioning.
• Manual rotation: 360° for complete orientation control.
• Remote control operation for contactless hold and release.
• Rechargeable battery providing up to 8 hours of operation.
• Transport cart included for easy movement in factory and field environments.
• Compact, ergonomic design for use in confined or difficult assembly areas.
• Modular design with extendable arms suitable for various panel sizes.

Technical Details (table)
Feature Name: Details
Box Dimensions: 1535x625x475 mm 13 kg ± 2
Number of Pads: 2+4
Machine Weight: 80 kg ± 2
Electrical System: 12 V 14 Ah
Pad Diameter: 290 mm
Maximum Load Capacity: 500 kg
Manual Tilting Angle: 0° / 90°
Manual Rotation Angle: 360°

Technical specifications

• Maximum carrying capacity: 500 kg
• Pad diameter: 290 mm
• Number of pads: 2+4
• Machine weight: 80 kg ± 2
• Box dimensions (packed): 1535 x 625 x 475 mm (box weight 13 kg ± 2)
• Electrical / battery system: 12 V, 14 Ah (rechargeable)
• Battery runtime: up to 8 hours of uninterrupted use
• Manual tilting: 0°–90°
• Manual rotation: 360°
• Included accessories: transport cart
• Safety: safety system and cross-safety technology (compliant with TS EN 13155)
• Design: modular design with extendable arms; compact and ergonomic for difficult assembly areas
