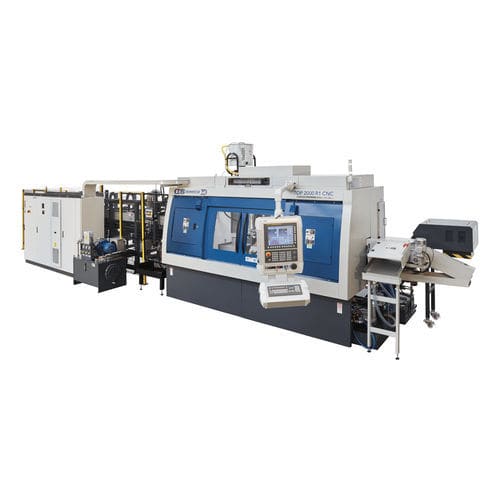

Automatic numerical control custom cutting end working machine.
Rotary transfer machine with horizontal axis for tube and bar end cutting and machining. Numerical control machine with high productivity, up to 2500 pieces/hour, designed for the machining of small and medium pieces: bar diameter from 6 to 110mm, finished piece length up to 700mm. Excellent performance for all types of machining It is able to perform the following processes: Chamfering – Facing – Drilling – Threading – Turning with static piece – Boring – Forming – Marking
General features
Machine Weight
8900 Kg
Installed Power
93,5 kVA
Diameter
6 - 81 / 10 - 95 / 15 - 110 mm
Pieces Length
10 - 350 / 90 - 550 / 190 - 750 mm
Lenght Of Loadable Bars
3000 - 6000 mm (standard) 7000/9000/12000 on request
Operating Units
HSK 63
Motor Power
7,5 kW/11kW/15kW
Spindle Rotation Range
450 - 4000 rpm (standard)
Cut off unit
Motor Power
11/15 kW
Blade Rotation Range
40 - 260 rpm (standard)
Blade Diameter
315 - 450 mm
