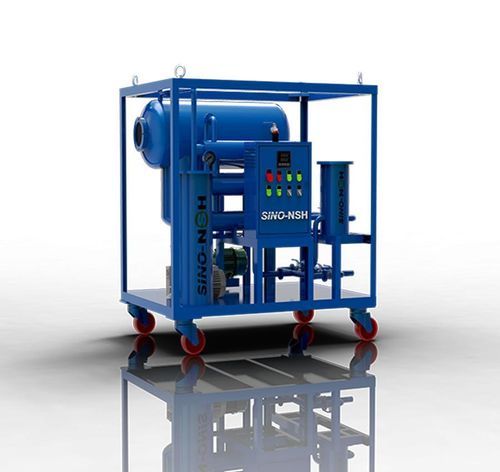

Oil purification system NSH-VF series

cost-effectivefor industrial applications

General
Single-Stage Vacuum Transformer Oil Purifier
NSH-VF is a basic solution vacuum oil purifier plant, which is budget friendly. It is used for different power transformers and is suitable for all insulation oils. It is used to remove moisture, gasses, particulate matter, etc. High efficient and easy operation. Stationary or mobile design.

• Brand Name:Sino-NSH
• Series:VF
• Treating Oil:Insulation oil (Transformer oil)
• Function:Dehydration, Degassing, Impurities-removal
• Flow Rate:600-6000 Liter/Hour
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:10 working days
• Supply Ability:50 sets per month

Under effect of heat and electric field, the exposure of insulation oil contained trace water, gas and particulate matters etc.
The use of Single-stage Vacuum Transformer Oil Purifier (Model SINO-NSH VF) is necessary, which will help you maintain optimal oil cleanliness. Therefore, making the most use of your equipment to gain the highest and save your money.

Applications
SINO-NSH-VF series single-stage vacuum insulation oil purifier is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers.

Equipped with regenerators, it can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 65KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.

Benefits of Transformer Oil Purifier

• Removes Dissolved Moisture Transformer Oil
• Reduces combustible gases and oxygen
• Improves oil dielectric values
• Improves transformer power factor
• Extends oil service life
• Extends transformer service life and reliability

Oil Data After Purification
Dielectric Strength (BDV): kV ≥60
Water Content: ppm ≤7
Gas Content: % ≤0.1
Impurity Size: μm ≤5

Machine Specification
Parameter / Value columns: VF-10 | VF-20 | VF-30 | VF-50 | VF-100
Capacity, liters/hour: 600 | 1200 | 1800 | 3000 | 6000
Heating Power, kW: 9 | 15 | 24 | 36 | 60
Total Power, kW: 11 | 17 | 26 | 39 | 65
Power Supply: Fully customizable
Inlet Diameter, mm: 25 | 25 | 25 | 32 | 40
Outlet Diameter, mm: 25 | 25 | 25 | 32 | 40
Dimensions (without trailer) length, mm: 1300 | 1400 | 1400 | 1400 | 1550
Dimensions (without trailer) width, mm: 900 | 900 | 900 | 900 | 1550
Dimensions (without trailer) height, mm: 1300 | 1300 | 1300 | 1700 | 1850
Weight (without trailer), kg: 300 | 330 | 350 | 400 | 650

Operating Conditions & Notes
Operating voltage options include 380 V (50 Hz), 380 V (60 Hz), 400 V (60 Hz), 415 V (50 Hz), 415 V (60 Hz), 220 V (60 Hz), 460 V (60 Hz), etc. Designed to operate satisfactorily at ambient temperatures from -20 °C to 55 °C.

Available Styles

• Fixed station type, mobile type with four wheels, mobile type with trailer
• Standard enclosure, shelf-covering type and explosion-proof type
• Available in different colors

Also named
Vacuum Dehydrator; Vacuum Purification System; Oil Degasification; Regeneration; Recycling
