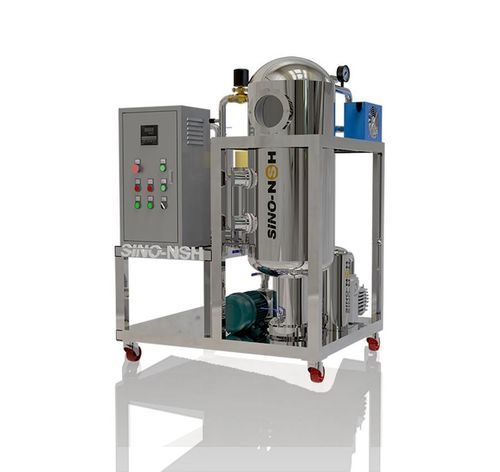

Oil purification system NSH-FV series

for industrial applications

General
Vacuum Phosphate Ester Fuel-Resistant Oil Purifier
NSH-FV is specialized for phosphate ester fuel-resistant oil. Adopts advanced hydrophilic and hydrophobic principles, the equipment is stainless steel made and could work for dehydration, de- acidification, broken emulsion, and high precious filtration.

• Brand Name:Sino-NSH
• Series:FV
• Treating Oil:Phosphate Ester Fuel-Resistant Oil
• Function:Dehydration, Degassing, Impurities-removal
• Flow Rate:600-3000 Liter/Hour
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:10 working days
• Supply Ability:50 sets per month

Application

• Sino-NSH-FV is a stainless steel machine with thermal and vacuum processing.
• Sino-NSH-FV is mainly used to improve the properties of phosphate ester fire-resistant oil in generator set. It can efficiently remove water, gas, impurities and oxide, meanwhile it can also reduce acid and improve the conductivity. Which is widely used in the field of electric power, chemical, paper, and metallurgical industries which have steam turbine, gas turbine, and hydro turbine
• Sino-NSH-FV adopts advanced hydrophilic and hydrophobic principle, the equipment is dehydration, de-acidification, broken emulsion and high precious filtration.

Machine Specification
Header: Units — FV-10 | FV-20 | FV-30 | FV-50
Flow Rate (L/H): 600 | 1200 | 1800 | 3000
Vacuum Range (MPa): -0.092 ~ -0.099 (approx.) across models
Working Pressure (MPa): ≤0.3 (all models)
Max Vacuum Range (Pa): ≤50 (all models)
Temperature Range (°C): 45 -- 65
Power Supply (V): Fully customizable
Heating Power (kW): 9 | 18 | 27 | 36
Total Power (kW): 11 | 20 | 33 | 40
Inlet Diameter (mm): 32 | 32 | 32 | 48
Outlet Diameter (mm): 32 | 32 | 32 | 48
Net Weight (Kg): 350 | 400 | 420 | 500
Size — Length (mm): 1200 | 1200 | 1200 | 1600
Size — Width (mm): 940 | 960 | 1000 | 1200
Size — Height (mm): 1550 | 1550 | 1600 | 2000

Oil Data After Purification
Cleanness (NAS): ≤5
Water Content (ppm): ≤50
Acid (MgKOH/g): ≤0.03
Impurity Size (μm): ≤1

Available Styles

• Fixing station type, mobile type with four wheels and mobile type with trailer
• Normal appearance type, shelf-covering type and explosion-proof type
• Available in different colors

Also named
Vacuum Dehydrator; Vacuum Purification System; Oil Degasification; Regeneration; Recycling
