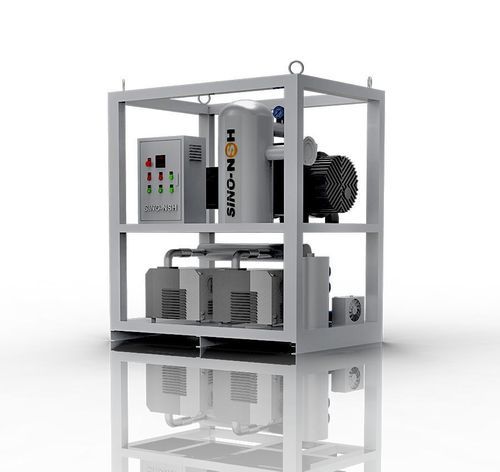

Modular vacuum pumping unit NSH-VR series

General
Vacuum Pump Set (Air Evacuating)
NSH-VR is a double-stage vacuum system. Specialized for transformer or other falicities evacuation job. Wide range of capacity. High efficiency, low consumption, easy operation. Customized solutions are acceptable.

• Brand Name:Sino-NSH
• Series:VR
• Function:Evacuation for facilities
• Flow Rate:100-3000 m3/Hour
• Power Supply:380VAC / 3Phase / 50Hz (or tailorable to yours)
• Delivery Time:10 working days
• Supply Ability:50 sets per month

Application
A continually increasing number of applications in industry and research are relying on vacuum technology. Thus widely differing requirements result regarding the vacuum generating systems.
Based on the long-standing experience in the design and manufacture of vacuum pump systems, NSH offers standardized pump systems which will match most applications – the VR pump systems.

Typical areas of application for VR pump systems are industry, research and chemistry. Here the focus is on processes for metal production and processing, drying and degassing, thermal treatment, coating in the area of semiconductor manufacture as well as surface refinement. VR pump systems are also used as backing pump sets for high vacuum systems in combination with diffusion pumps, turbomolecular pumps and cryo pumps.
、
Machine Specification

• Max vacuum range: 0.06 Pa (all models)
• Power supply: fully customizable (typical example: 380 VAC / 3-phase / 50 Hz)
• Capacity / Total power / Outlet diameter / Net weight / Size (L×W×H):
• VR-30 — 100 m³/h; 3 kW; outlet Ø 32 mm; 450 Kg; 900×800×1200 mm
• VR-70 — 250 m³/h; 3 kW; outlet Ø 32 mm; 550 Kg; 900×800×1200 mm
• VR-150 — 500 m³/h; 5 kW; outlet Ø 40 mm; 600 Kg; 1000×800×1200 mm
• VR-300 — 1000 m³/h; 7 kW; outlet Ø 40 mm; 900 Kg; 1200×800×1200 mm
• VR-600 — 2000 m³/h; 8 kW; outlet Ø 50 mm; 950 Kg; 1500×1000×1200 mm
• VR-900 — 3000 m³/h; 13 kW; outlet Ø 650 mm; 1950 Kg; 1800×1300×1500 mm

Extra Options

• Base frame with caster wheels
• Metallic enclosure cover on caster wheels
• Metallic enclosure cover on single-axle trailer
• Base frame on double-axle trailer
• Metallic enclosure cover on double-axle trailer
• Metallic enclosure cover with operator room on double-axle trailer

Also named
Vacuum Dehydrator, Vacuum Purification System, Oil Degasification, Regeneration, Recycling
