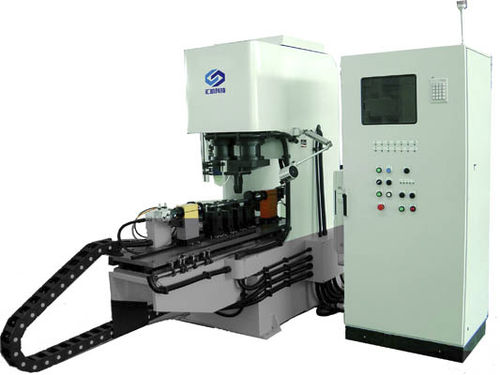

Model JJC mechanical shaft automatic straightening machine is newly designed specially for motorcycle industry on
the basis of Model JE hydraulic one. Model JJC produced for the automobile industry for cam shafts, axle shafts,
gear shafts ,motor rotor, piston rod gear selector forks. With features of high precision, easy to use
cost-efficiency.
All process including measuring, positioning, straightening Go/No judgment could be done automatically,
what is operator only do is to load/unload workpiece press the button “ON”.
Features
●The machine is servo-mechanically controlled with high accuracy efficiency.
●Translation turning centre reduce the straightening schedule.
●Embedded type controlling system basis on ARM7, easy to use low failure rate
●Smaller cleaner
●forces available from 60kN to 100kN
●High reliable accuracy controlling system
●One-key operation, all process could be done automatically
●Automatically correction adjustment system
●Friendly operator interface
●Other application for choice
Configurations
