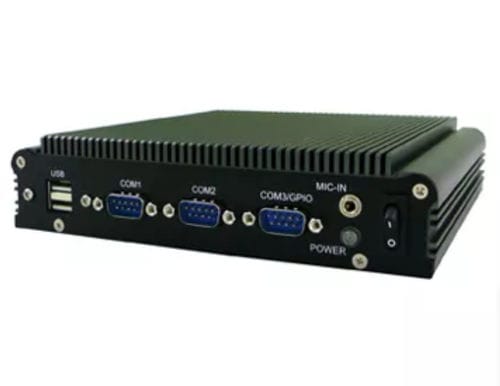

Embedded PC SBOX-2300

wall-mountedDIN railVESA mounting

Fanless Embedded Computer with Intel Braswell N-Series Atom CPU • Intel Braswell N3060 Atom CPU • Triple Display Output (DVI-I / HDMI / VGA) • Embedded OS (Win 10 and Ubuntu 14.04) • Dual Gigabit Ethernet and 2 x RS-232 • Wide Range Operating Temp. : -30~60ºC • Ultra Slim(40mm), Compact Size and Fanless • DC 12V Power Input Graphic - Intel HD Graphics ATA - 2 x Serial ATA ports with 6GB/s HDD Transfer Rate LAN Chipset - 2 x Intel i210-AT Gigabit Ethernet Watchdog - 1 ~ 255 Level Reset I/O GPIO Port - 4 In and 4 Out GPIO Ports (5V Level) Audio Port - Line-out / Mic-in Expansion bus - 2 x Mini-card Slots Storage Type - 1 x 2.5"drive bay for SATA Type Hard Disk Drive / SSD 1 x SATA DOM Mechanical & Environmental Dimension (LxWxH) - 182 x 167.6 x 40 mm Mounting - Wall-mount, VESA-mount, Din Rail Mounting Kit Weight - 1200g (bare-bone) Relative Humidity - 10% RH – 90% RH (non-condensing) Operating Temp. - -30 ~ 60ºC, ambient w/ air Storage Temp. - -40 ~ 85°C
