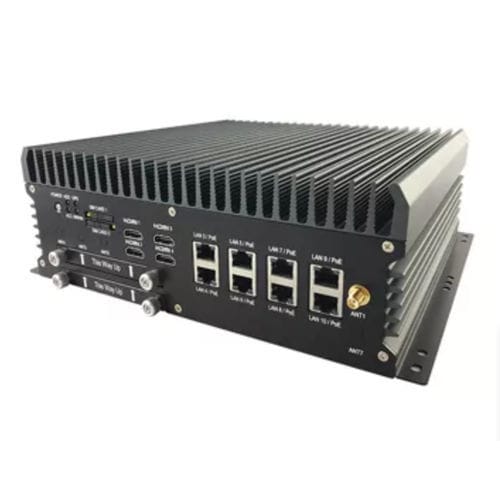

Box computer ABOX-5200G1

Intel® Core™ i7-8700TIntel® Core™ i5-8500TIntel® Core™ i3-8100T

AI Computing Platform with Intel Gen 8th 6 Cores i7 CPU 。Intel GEN 8th 6 Cores i7-8700T 。NVIDIA® GeForce GTX 1050TI GPU 。Support 768 CUDA Cores 。8 x GPI and 4 x GPO and 3 x RS-232/422/485 。Dual Hot Swappable SATA Storage RAID 0,1,5 。9-48V DC Input and Operating Temp.: -40~70°C 。10 x GbE LAN (Optional for 8 x PoE) Memory - 2 x DDR4 2400 MHz SO-DIMM up to 32GB Lan Chipset - 9 x Intel i210-AT and 1 x i219 (support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL Watchdog - 1 ~ 255 Level Reset TPM - 2.0 I/O Serial Port - 3 x RS 232/422/485 (Auto Direction Control) USB Port - 4 x USB 3.0 Ports LAN - 10 x RJ45 Ports for GbE (Optional for 8 x POE total Max.100w) Video Port - 3 x DP, 4 x HDMI Ports DIO Port - 8 x GPI and 4 x GPO Audio Port - 1 x Line-out, 1 x Line-in and 1 x Mic-in Expansion bus - 3 x Full Mini-PCle Slots and 1x M.2 A-E Key 2230/3030 slot (2 x SIM Card Sockets for 3G/LTE) Graphics Graphics - NVIDIA® GeForce GTX 1050TI GPU (768 CUDA Cores) Support for OpenGL 4.5 and OpenCL™ 1.2 Support for DirectX® 12 (Feature Level 12_0) features Resolution - Max Resolution (HDMI 2.0b) :4096x1260@60Hz Storage Type - 2 x 2.5” Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5 1 x mSATA
