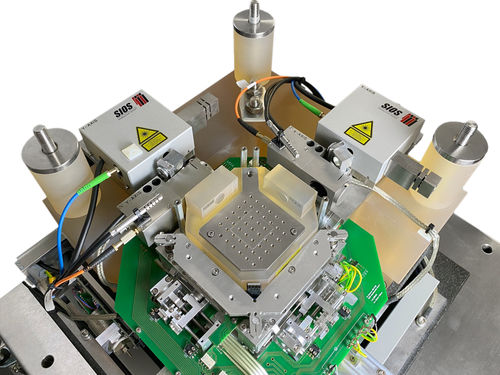

3-axis nanopositioning system NMM-1

laseropticalindustrial

Positioning, manipulation, processing and measurement of objects and structures with nanometer accuracy • world's most precise nanopositioning and nanometrology machine • measuring and positioning range 25 x 25 x 5 mm • resolution 0.1 nm • highest accuracy 3D positioning and measuring system • probing systems, e.g. laser focus sensors, atomic force microscopes, white light sensors, 3D micro scanners • open device architecture enables application of customized sensors • the NMM-1 is controlled via PC software. User API is available. The nanopositioning and nanomeasuring machine for three-dimensional coordinate measurement operates in a measuring range of 25 mm x 25 mm x 5 mm with a resolution of 0.1 nm. A special sensor arrangement ensures a measurement free of aberrations in all three coordinate axes. The measuring axes of three miniature interferometers intersect virtually at the point of contact between the probing sensor and the measured object. The measured object lies directly on a movable mirror corner. The position of the mirror corner is detected by the three fixed miniature interferometers. The mirror corner is positioned with a three-axis drive system. Two angle sensors are used to measure and compensate for angular deviations during positioning. The light from one stabilized laser is transmitted from the electronics unit to the interferometer heads via optical fibers. This results in a compact and temperature-stable design of the nanopositioning and nanomeasuring machine.
