Automatic filling machine BIGFILL

for PET bottlesfor liquidsrotary

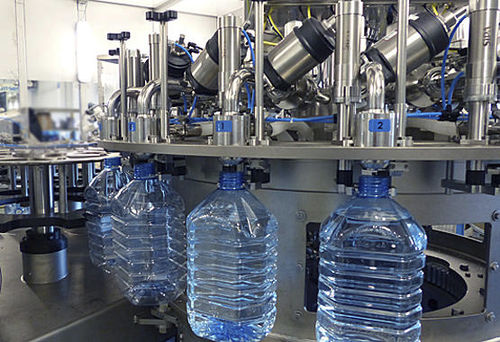

Bigfill is an electronic rotary volumetric filler for bottling still liquid products in large PET bottles. The machine is optimized for moving and filling large formats (up to 20 litres). Volumetric gravity filling monobloc for large size containers. Extremely simple, clean and fast “no contact” valve, with a 3 positions’ membrane valve featuring double speed. This solution guarantees high flow performance. HIGHLIGHTS No contact between valve and bottle. High flow performance and filling speed modulation to optimize the large size filling process. High bottled product precision. Extremely clean and simple filling valve. Automatically engaged dummy bottles. Valves made entirely of AISI 316 stainless steel. GENERAL FEATURES External tank Valve with magnetic flow meter for definition of the content in the bottle. Designed for filling large formats (up to 20 litres). No filling tube. During filling, the bottle is kept in position by a mechanical gripper. Inside the monoblock, the full bottles of over 5 lt are moved by the bottom. Simple to operate with selection of the various formats directly from the operator panel. Controlled contamination cabin and cap sterilizing unit available in option in order to enhance hygienic standards. It can be produced with microbiological isolators, thereby minimising the filling environment around the container.
