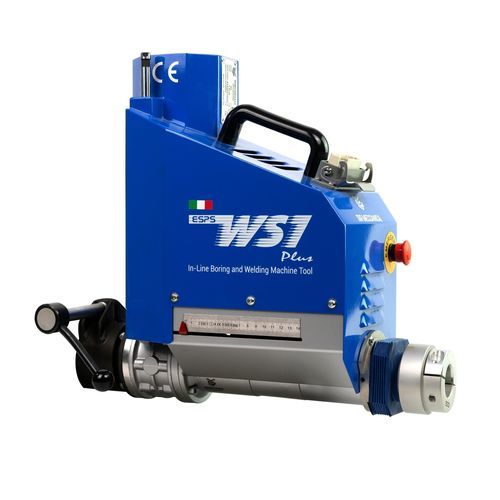

Multifunction portable line boring machine WS1 Plus

for grindingfor weldinguniversal

With its perfect balance between size and power, it masters any situation and is perfectly at ease in every job. The harmonious combination of strength and precision, with reduced proportions, of the Ws1 makes it stand out within the Ws range. The axial feed is unlimited. A simple yet effective system allows to recover the 120 mm (4.72”) feed step, without changing the radial and axial position of the cutting tool, maintaining the set dimension and without leaving marks on the machined surface. For this purpose, the tool holder shafts have a patented conical connection which allows them to be connected to each other precisely, to cover long machining operations and/or to reach machining points far away from the machine body. With the standard configuration the diameter of the WS1 Plus' shaft is Ø 35 mm and we supply three connectable boring shafts with conical coupling, that will allow to cover a length of 2.500 mm (measuring 1.000 mm + 1.000 mm + 500 mm). Their chrome-plated surface makes them solid and wear-resistant, as well as it optimizes their sliding inside the machine and holders. Also, the machine tool can be equipped with the KIT 2000 (facing head) and with the KIT 20, that allows machining operation starting from a diameter of Ø 20 mm. Drive unit weight: Kg. 20
