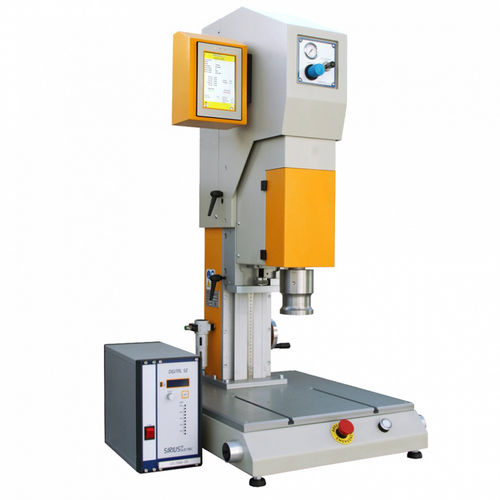

Ultrasonic welding machine USP APP

semi-automaticfor plastics230V single phase

The USP APP ultrasonic welders are designed and manufactured in our Vigevano factory. The mechanical and electrical solutions assure that it operates under the best possible conditions with a full range of regulation options, thereby making it possible to adapt the welder to the widest range of welding situations. The total reliability of these ultrasonic generators also ensure a consistent welding process. The USP APP welders are available in three models: With base Bench type Column type (possibility of incorporation on automatic lines)The transducer holder head moves pneumatically on high-precision prismatic guides. The welder is equipped with a mechanical stop to control the welding height. There is also a wide range of generators to extend the user options: 20 and 36 kHz systems are available with power ratings of between 500 and 3000 Watts. These generators are latest generation and totally digital. They are equipped with a backlit display and come enclosed in an elegant metal cabinet. One of the most important features of the welder is the cycle control system which is totally enabled from the TOUCH SCREEN DISPLAY.Main technical features: Overall dimensions 470x660x1200 mm Worktop 450x600 mm Sonotrode stroke 100 mm. max Head descent cylinder 63 mm. dia. Descent speed regulator Worktop /sonotrode height 0 - 400 mm. Optical ruler Touch screen display Proportional valve USB port for downloading of welding data. ITALIAN QUALITY
