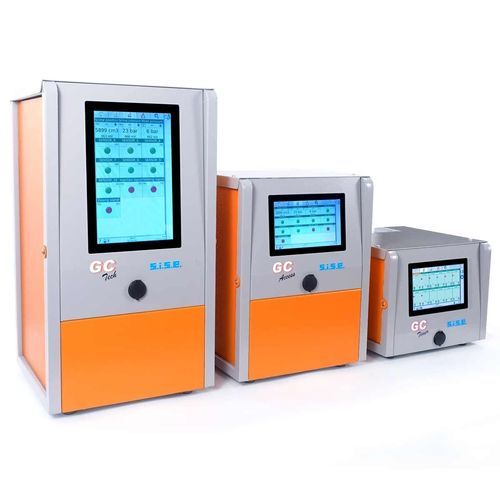

Full Sequential Injection Controller GC'Tech / GC'Access / GC'Timer

Overview
SISE sequential valve gate systems and related solutions for plastic injection molding provide controlled, stepwise injection for large and complex parts. Systems range from compact IS'TIMER units to advanced GC'TECH and GC'ACCESS controllers and are supplied as complete packages including hydraulic power units, manifolds and accessories.

Sequential Valve Gate Systems
Main capabilities and use cases:

• Controlled sequential injection to eliminate weld lines on large parts (bumpers, instrument panels, door modules) and for multilayer or bi-injection components.
• Available configurations for 4 to 36 gates with compact and advanced controller options.
• Integration of pressure sensing and predictive PSP functions for quality assurance and process stability.

Product line highlighted on this page
Controllers and solutions mentioned: GC'TECH, GC'ACCESS, GC'TIMER and IS'TIMER — families adapted for automotive and technical parts production with options for pressure sensors and process prediction.

Multizone and Modular Controllers (related products)
Multizone and modular ranges complement sequential control:

• MV3 Series multizone controllers with touchscreen options (7", 10" or 12") for applications with many zones.
• Modular controller range with single-zone and interchangeable dual-zone modules (1ZX and 8 Series) for smaller zone counts.

Temperature control families (related products)
Temperature management products include:

• e-Therm W90 (water, atmospheric) for standard mold temperature control.
• Pressurized water controllers e-Therm W140 / W160 / W180 for high-temperature water circuits.
• Oil temperature controllers covering 180–350 °C for high temperature applications.

PSP / Process monitoring and benefits
SISE PSP solutions use direct or indirect cavity pressure and temperature measurement to monitor and predict process behavior. Key benefits include:

• Reduced start-up costs and faster process stabilization
• Simplified transfer of production between sites
• Shorter process development time
• Switchover control via machine and/or tool signals
• Increased autonomy for data acquisition, analysis and interpretation
• Detection of incomplete parts through cavity pressure measurement

M.E.S. Cyclades — Production Monitoring
The M.E.S. Cyclades system provides real-time production monitoring, quality control and traceability with standard and optional modules:

• Monitoring: tool maintenance, machine maintenance, planning
• Management: production orders & materials, operator actions & shift changes, e-mail alerts
• Analysis: results by shift, results by production order, custom reports
• Optional modules: ORH (human resources optimization), OM (manual operations), Energy, SPC, Material Consumption, Web access, Barcode reading, Label printing

Applications
Typical sectors: automotive (large and complex parts), medical/pharmaceutical, packaging, technical parts and other industries requiring precise temperature and sequential injection control.

Technical specifications

• Controller families: GC'TECH, GC'ACCESS, GC'TIMER, IS'TIMER
• Controlled injection points: 4 to 36 gates
• MV3 Series: touchscreen options 7", 10", 12"
• Modular controllers: single-zone and interchangeable dual-zone modules (1ZX, 8 Series)
• Temperature controllers: e-Therm W90, W140/160/180, oil controllers 180–350 °C
• PSP features: cavity pressure and temperature measurement, incomplete part detection, process prediction
