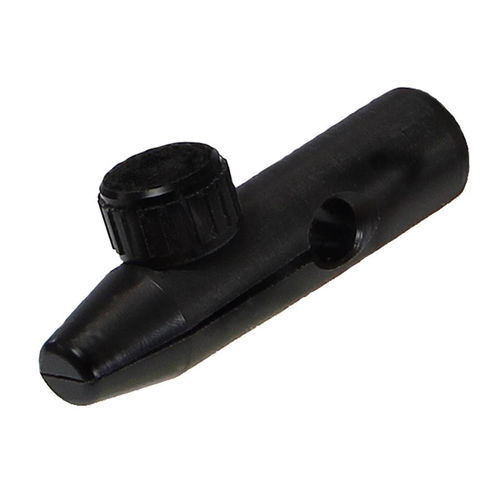

Clamp SC

The SC Series Clamp is designed for conveniently holding thin objects such as optical filters, transparencies, or razor blades used as optical knife edges. It features compatibility with 0.5 inch diameter rods and can be attached to the end of PR or MPR precision rods using a 1/4-20 (M6) or 8-32 (M4) set screw in the SC-1 or MSC-1 slide clamp, respectively. The SC-1 slide clamps can also be held by a CR-0.5 or UC-0.5 rod clamp.

Product Features

• Firm-grip Delrin® knobs
• Convenient 1/4-20(M6) mounting hole
• Quality machined construction
• Vacuum compatible versions available upon request

Characteristics / Technical Specifications

• Product type: Slide clamp for thin items
• Fits: 0.5 inch diameter rods
• Mounting: 1/4-20 (M6) or 8-32 (M4) set screw
• Compatible with: PR or MPR precision rods, CR-0.5 or UC-0.5 rod clamps
• Available sizes: Small, Large
• Available units of measure: Metric, Imperial
• Material: Machined construction with Delrin® knobs
• Vacuum compatibility: Available upon request
