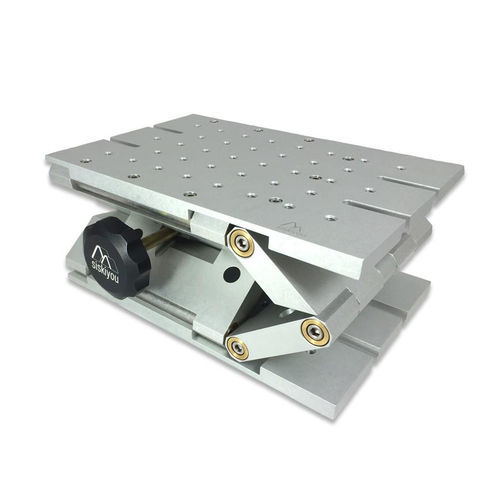

Scissor jack 560mechanicallaboratory
Add to favorites
Compare this product
Characteristics
- Type
- scissor
- Technology
- mechanical
- Applications
- laboratory
- Lifting height
76.2 mm
(3 in)- Height
76 mm
(3 in)- Stroke
76.2 mm
(3 in)
Description
The 560 lab jack features a unique scissor design with low backlash pivots, ensuring the platform remains virtually wobble-free at any position along its vertical travel. Its large adjustment knob is connected to a rolled brass leadscrew, providing smooth, stiction-free adjustment even under heavy loads.
Product Features
Performance Specifications
Characteristics / Technical Specifications
Product Features
- Two convenient sizes
- U.S. system and metric compatible
- Heavy load capacity
Performance Specifications
- Minimum stack height: 3.00-inch [76.20-mm]
- Travel range: 3.00-inch [76.20-mm]
- Parallelism over full travel: .009-inch [1 milliradian]
- Maximum load over full travel: 80 lbs
Characteristics / Technical Specifications
- Type: Scissor type laboratory jack
- SKU: 53030000E
- Travel: 75MM/3.0IN
- Weight unit of measure: LB
