Mounting plate 2A-45D

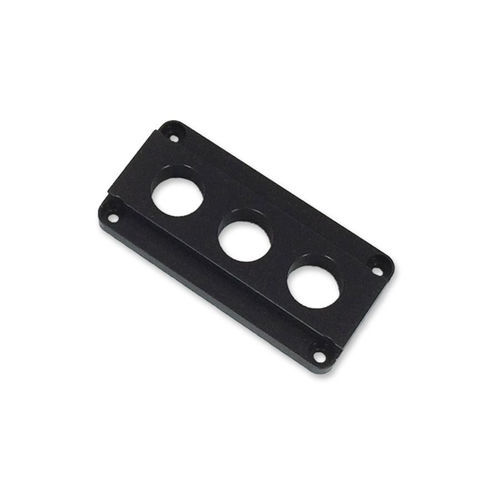

The 2A-45D is an amplifier mount designed for installing an Axon 2A style amplifier onto Siskiyou's MXC-45D clamp. The MXC-45D's unique design allows for repeatable electrode replacement using a simple yet precise rotating clamp. Its top clamp is compatible with Axon CV200B, CV-7A, and HEKA EPC-10 headstages. Note that the dovetail mounting feature must be ordered from HEKA. The rotating portion is engineered so that the probe or pipette rotates up and away from the experiment at a 45° angle through a full 180°. The repeatable stop returns to its location with micron-scale accuracy, and the stop's orientation can be easily changed by loosening a single 1/4-20 cap screw.

Documents

• Spec Sheet: Available for download.
• 3D Model: STEP file available for download.

Technical Specifications / Features

• Product type: Amplifier mount for Axon 2A style amplifier
• Compatible clamp: Siskiyou MXC-45D
• Compatible headstages: Axon CV200B, CV-7A, HEKA EPC-10
• Rotation: 45° angle, full 180° movement
• Repeatable stop: Micron-scale accuracy
• Stop orientation: Adjustable by loosening a single 1/4-20 cap screw
• Dovetail mounting: Must be ordered from HEKA
• SKU: 15500000E
