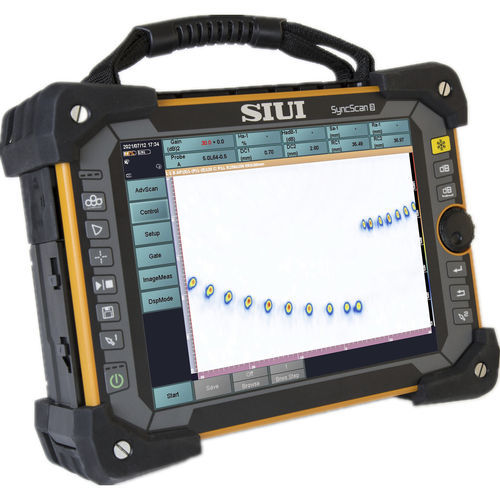

Phased array flaw detector SyncScan 3

time-of-flightultrasonic3D imaging

SyncScan 3 is 64:128PR PAUT flaw detector with total focusing method (TFM) and 4-ch TOFD, which bring more possibilities for your inspection in oil & gas, transportation, aerospace, shipbuilding, manufacturing industries. ● TFM 3D real-time imaging. ● Up to 6 TFM modes in one time. ● Support TFM image resolution 1024x1024 & raw FMC data recorded. ● 64 channel PAUT with higher sensitivity and SNR, ideal for ≥100mm thick welds. TFM ● Fitting Curve Algorithm in TFM (Published patent) ● Free selection of TFM image resolution and support up to 1024x1024. ● TFM 3D real-time imaging, with higher resolution & more intuitive result. ● Up to 6 propagation modes can be displayed simultaneously to better identify and size flaws. 64:128PR PAUT ● 2.5X faster PAUT scanning speed ● 64 channel PAUT provides better coverage and SNR, especially suitable for inspecting ≥100mm thick materials ,complex composite materials, etc. ● CAD import function for fast setup workpiece. ● PA 3D for 3D display of workpiece, probe, wedge, beam simulation and flaws. 4 channel TOFD ● 3X faster TOFD scanning speed, ● 4-ch TOFD are especially suitable for welding inspection with thickness up to 300mm. ● Simultaneous display of TOFD + UT provides full coverage of workpiece without blind zones.
