Robotic palletizer RoboMOD Palletizer

automaticarticulatedmodular

Overview

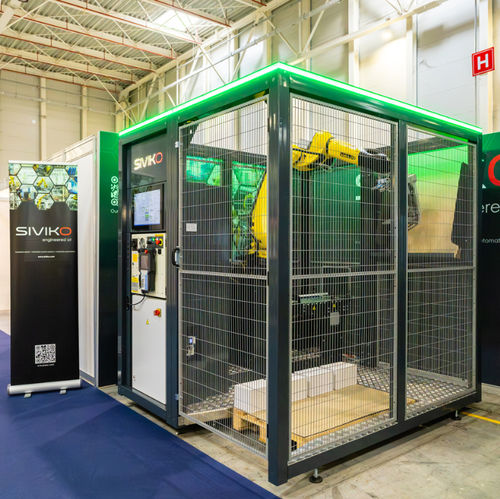

The Siviko RoboMOD Palletizer is a modular robotic palletizing cell available in sizes S, M, L and XL. Designed for industrial palletizing tasks, it supports various end-of-arm tools, fast commissioning and direct integration with factory IT systems.

Modular design & commissioning
The cell is composed of mechanical and electrical modules with quick connectors for rapid assembly and transport. The modular software and hardware allow customers to perform on-site commissioning after a brief initiation.

Siviko Easy Pallet software

• Intuitive pallet layout creation without programming
• User inputs: product dimensions, weight and orientation
• User inputs: pallet size
• Layout options for even and odd rows
• Set number of items per row and number of rows
• Includes 21" industrial HMI and industrial PC

Industrial software & data
Based on Ignition (industrial SCADA/MES). Facilitates extraction and transfer of production data (OEE, SCADA, MES, ERP). Open architecture enables easy integration, lower integration costs, full data ownership and modern security (TLS 1.3 supported).

Siviko RoboMOD Palletizer cell types

• RoboMOD Palletizer S
  • Robot: FANUC M10 series
  • Max payload: 9 kg (vacuum gripper only)
  • Max cycle: 13 pcs/min (single pick, vacuum gripper)
  • Gripper: vacuum only
  • Approx. cell size: 2300 x 2600 x 2300 mm (L x W x H)
  • Base configuration: FANUC robot, single infeed conveyor, vacuum gripper, safety fences, 1 pallet place, slip-sheet pick-and-place, Siviko Easy Pallet, HMI
  • Regular price from: 65 000 EUR; Promotional price: 59 000 EUR
• RoboMOD Palletizer M
  • Robot: FANUC M20 series
  • Max payload: 17–20 kg (pneumatic box/bag gripper or vacuum)
  • Max cycle: 9–13 pcs/min (single pick)
  • Compatible with all gripper types; multipick possible (double/triple vacuum)
  • Approx. cell size: 2500 x 2800 x 2300 mm (L x W x H)
  • Regular price from: 72 000 EUR; Promotional price: 67 000 EUR
• RoboMOD Palletizer L
  • Robot: FANUC M710 series
  • Max payload: 40 kg (vacuum, pneumatic box or bag gripper)
  • Max cycle: 9–13 pcs/min (single pick)
  • Compatible with all gripper types; multipick with multi-suction grippers
  • Approx. cell size: 3200 x 3500 x 2300 mm (L x W x H)
  • Regular price from: 92 000 EUR; Promotional price: 89 000 EUR
• RoboMOD Palletizer XL
  • Robots: FANUC R2000 or FANUC M-410 series
  • Max payload: 150 kg (vacuum, pneumatic box or bag gripper)
  • Max cycle: 9–13 pcs/min (single pick)
  • Compatible with all gripper types; multipick options available
  • Approx. cell size: 3500 x 3500 x 2300 mm (L x W x H)
  • Price from: 104 500 EUR

Modules and options

• Second pallet place to extend autonomy; robot continues on second pallet when first is full
• Internal light barriers — available with second pallet place to allow pallet change while robot operates
• Exit light barrier — replaces door to speed pallet changes for very fast cycles
• Two infeed conveyors (rear) — serve two production lines from the back
• Two infeed conveyors (sides) — serve two lines simultaneously when gripper-compatible
• Automatic pallet retrieval (single/double) — transfers full pallets to conveyor or wrapper; uses exit light barrier
• Empty pallet pick-and-place module — buffer for 13 empty pallets with forks/sensor; available for L and XL

Types of Siviko grippers

• Vacuum gripper: suitable for many products; limitations on open or very flexible tops; size and payload customizable
• Siviko PBXG box gripper: mechanical with pneumatic actuators, lifts from below for secure handling of boxes/trays; payload up to 17 kg (customizable); max box ~570 x 220 x 320 mm; min ~280 x 150 x 200 mm
• Siviko PBG bag gripper: pneumatic top press for bags/sacks/pouches; payload up to 50 kg (customizable); max bag ~800 x 550 x 150 mm; min ~350 x 250 x 80 mm
• Custom grippers: for non-standard products not handled by standard tools

Main features

• Modular construction for transport, assembly and customization
• Industrial FANUC robots for reach, speed and payload range
• Multiple end-of-arm tool options: vacuum, pneumatic box and bag grippers; slip-sheet and pallet pick-up
• Passive guarding with optional light barriers to increase productivity
• Siviko Easy Pallet software with high-performance HMI for simplified operation
• Remote maintenance for first 12 months; local FANUC robot maintenance; standard parts for straightforward repair

Benefits

• Increase palletizing throughput and eliminate bottlenecks (up to ~13 cycles/min depending on configuration)
• Reduce operating costs and improve ROI (often under 3 years) while reallocating labor to higher-value tasks
• Improve repeatability and process reliability
• Flexible handling: single end-of-arm tool can cover many SKUs; pallet layouts without programming

Technical specifications

• Brand: Siviko
• Commercial name / model: RoboMOD Palletizer
• Available cell types: S, M, L, XL
• Typical robot suppliers: FANUC (M10, M20, M710, R2000, M-410 series)
• Payload range: 9 kg up to 150 kg (model dependent); higher payloads possible with other robots
• Cycle time: up to ~13 pcs/min (single pick), model and gripper dependent
• Typical cell sizes (L x W x H): S ~2300 x 2600 x 2300 mm; M ~2500 x 2800 x 2300 mm; L ~3200 x 3500 x 2300 mm; XL ~3500 x 3500 x 2300 mm
• Base configuration includes: FANUC robot, single infeed conveyor, vacuum gripper, safety fences, 1 pallet place, slip-sheet pick-and-place, Siviko Easy Pallet, 21" HMI
• Software platform: Ignition-based (SCADA/MES integration ready)
• Available modules/options: second pallet place, internal light barriers, exit light barrier, two infeed conveyors (rear/side), automatic pallet retrieval, empty pallet pick-and-place
• Gripper types: vacuum, PBXG box gripper, PBG bag gripper, custom grippers
• Indicative starting prices (base module, excl. transport/commissioning): S promo ~59 000 EUR; M promo ~67 000 EUR; L promo ~89 000 EUR; XL from ~104 500 EUR
