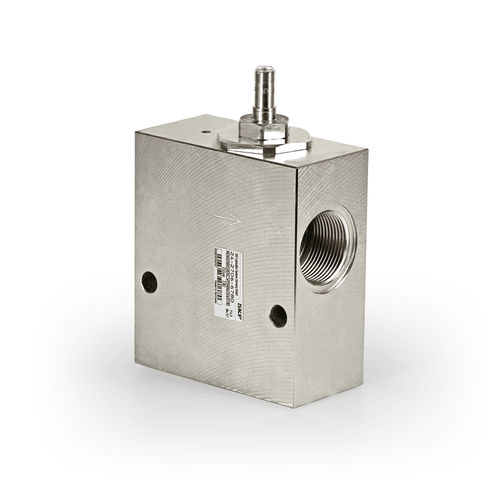

Oil flow lubrication system flow limiter SMB 6

For use in oil circulation lubrication systems The SMB 6 flow limiter is designed to divide the main line flow into parallel, individual, flows. The flow is generated independently of system pressure changes and virtually independently of viscosity, guaranteeing a constant flow. The SMB 6 provides a flow rate from 25 to 90 l/min (52.8–190 pts/min) and a pressure range of up to 200 bar (2 900 psi). The flow limiter offers oil flow monitoring with a signal transmitter or piston detector. These indicators create a fault signal when the flow rate drops to approximately 85%. The SMB 6 flow limiter is a perfect soltution for applications with changing ambient temperatures and the need for a stable oil flow such as in oil circulation lubrication systems. Features and benefits Stable oil flow rate regardless of pressure, temperature or viscosity changes Easy start-up with fixed flow rate via pre-selected nozzle sizes Adaptation of flow rates by plug-in nozzles High operating temperature up to +100 °C Optional ATEX version Extremely robust design Applications Mining, Cement and Oil & Gas industry Metal forming, machine tools Pulp & Paper industry Industrial gearboxes
