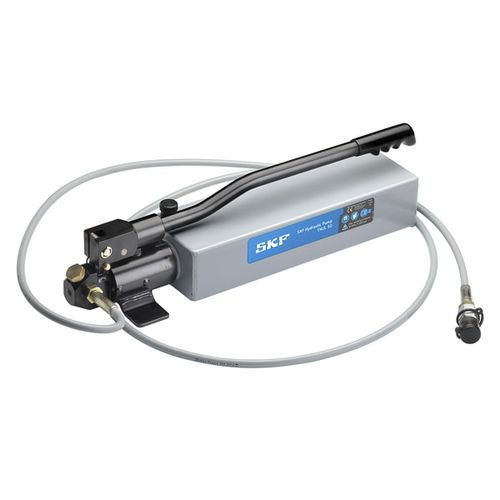

Hydraulic piston pump TMJL 50 series

digitalfor fluidslarge

The TMJL 50 pump is intended for use on low pressure side of SKF OK couplings. It works also well with Hydraulic nuts HMV E (all sizes) and for mounting and dismounting bearings or components where a maximum pressure of 50 MPa (7 250 psi) is required. Alternatively, it can be used with other common hydraulic applications that require hydraulic pressures of up to 50 MPa (7 250 psi). The versatile pump is supplied in a sturdy wooden quality carrying case making it ideal for using both in the workshop and onsite. It comes with a mounted 3 000 mm (118 in) long pressure hose and quick connect coupling. The pump is pre-filled with Mounting fluid LHMF 300. A mating nipple and an extra litre of this mounting fluid are supplied in the tool case as well. The pump is also suitable for LHDF 900 Dismounting fluid. Features & benefits Versatile design Ready to use; fitted with hose and quick connection coupling Integrated overpressure valve and port for a pressure gauge Ideal for workshop or on-site use Large oil container, capacity 2700 cm³ (165 in³) pre-filled with LHMF 300 Packed in a sturdy protective case Applications SKF OK coupling hydraulic chambers All sizes Hydraulic nut Oil injection applications where the maximum pressure is 50 MPa (7 250 psi)
