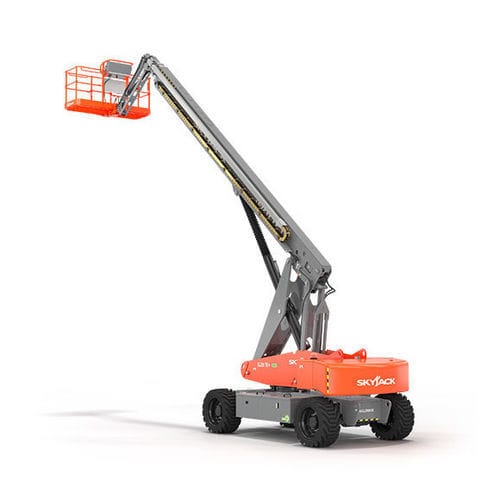

Wheeled telescopic boom lift SJ22/28 TE+

self-propelledbattery-poweredrough terrain

Overview
Skyjack’s battery-powered rough terrain telescopic booms provide high platform capacities and a quiet, zero-emission rental solution that reduces operating costs and improves utilisation.

Key systems and technology

• SKYCODED™ — A relay-based control system with Skyjack’s color-coded and numbered wiring to simplify troubleshooting and repairs for faster maintenance and lower costs.
• EASYDRIVE™ — Boom controls remain oriented to the operator regardless of turret position, reducing operator confusion and improving maneuvering accuracy.
• AXLDRIVE — Axle-based drive with operator-controlled locking differential on the rear axle and limited-slip front differential; designed for durability, low maintenance and varied job-site terrain navigation.

Resources

• Specs sheet (PDF available)
• Features brochure (PDF available)
• Product video (embedded)
• Familiarization video (embedded)
• Product images and media gallery

Specifications

• SJ22 TE+: Work Height 22.30 m; Platform Height 20.30 m; Platform Size 0.91 m x 2.44 m; Stowed Width 2.50 m; Tailswing 1.53 m; Stowed Height 2.57 m; Transportation Height 2.65 m; Stowed Length 11.94 m; Transportation Length 9.65 m; Ground Clearance 0.53 m; Wheelbase 2.51 m; Rotation 360° continuous; Platform Rotation 175°; Jib Length 1.68 m (70° / 60°); Weight 10,500 kg; Gradeability 35%; Turning Radius (Inside) 2.90 m, (Outside) 5.90 m; Axle Oscillation 8 cm; Drive Speed (High) 4.8 km/h; Capacity 300 kg / 454 kg; Horizontal Reach 15.20 m; Maximum Persons 2 / 3; Wind Rating 28 mph (12.5 m/s); Tire Type Foam-Filled; Tire Size 15-625; Hydraulic Reservoir 66 L.
• SJ28 TE+: Work Height 28.22 m; Platform Height 26.22 m; Platform Size 0.91 m x 2.44 m; Stowed Width 2.51 m; Tailswing 1.53 m; Stowed Height 3.15 m; Transportation Height 3.15 m; Stowed Length 12.49 m; Transportation Length 10.85 m; Ground Clearance 0.40 m; Wheelbase 3.355 m; Rotation 360° continuous; Platform Rotation 175°; Jib Length 1.68 m (70° / 60°); Weight 16,275 kg; Gradeability 45%; Turning Radius (Inside) 3.36 m, (Outside) 6.83 m; Axle Oscillation 6 cm; Drive Speed (High) 4.8 km/h; Capacity 300 kg / 454 kg; Horizontal Reach 20.80 m; Maximum Persons (not specified); Wind Rating 2/3 @ 12.5 m/s; Tire Type Foam-Filled; Tire Size 18-625; Hydraulic Reservoir 150 L.

Accessories and options

• 0.91 x 1.83 m Platform — SJ22 TE+: Yes; SJ28 TE+: No
• 36" x 96" Platform — SJ22 TE+: No; SJ28 TE+: Yes
• Battery options — SJ22 TE+: No; SJ28 TE+: Yes
• White noise alarm — SJ22 TE+: Yes; SJ28 TE+: Yes

Technical specifications (detailed)

• SJ22 TE+: Detailed configuration as above for job-site planning, transport and lift planning; refer to spec sheet for axle, tire and reservoir verification.
• SJ28 TE+: Detailed configuration as above for job-site planning, transport and lift planning; refer to spec sheet for axle, tire and reservoir verification.
