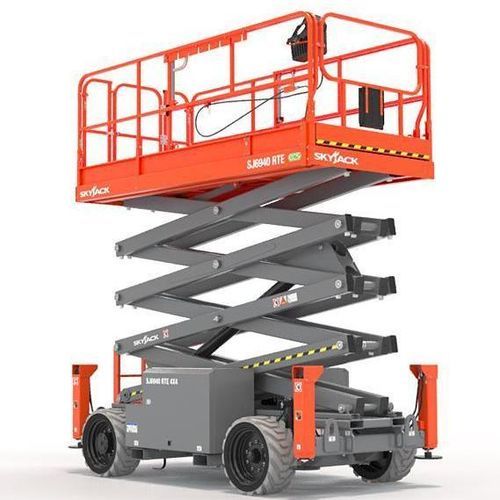

Mobile scissor lift SJ6940 RTE

wheeledself-propelledfully-electric

Overview
The SJ6940 RTE is a rough terrain scissor lift offering a 14.19 m work height and an all-electric drive system with a front oscillating axle. Designed for outdoor and indoor construction and maintenance tasks, it delivers an extended working area with a total length including extension deck of 4.45 m.

Benefits

• All-electric drive for improved site control
• Intelligent drive system with torque modes that adapt to grade and engine RPM
• Longest working area in its class (total length 4.45 m including extension deck)
• Front oscillating axle for better ground contact on uneven terrain
• Self-centering scissor stack for stable platform alignment
• Single lift cylinder for simplified maintenance

SKYCODED™
Proven control system using Skyjack’s color-coded and numbered wiring layout to simplify troubleshooting and reduce maintenance time and costs.

ACCESSORYZERS™
Manufacturer-approved accessories enhance machine versatility, from material handling fittings to weather protection and operator convenience solutions.

Accessories and options

• Bio oil
• Cold weather package
• DC heavy-duty pipe rack
• SGLE (secondary guarding lift enable)
• Telematics ready
• Tool caddy
• White noise alarm
• Elevate

Specifications (extracted table)
Model: SJ6940 RTE
Work Height: 14.19 m
Raised Platform Height: 12.19 m
Lowered Platform Height: 1.58 m
Overall Width: 1.80 m
Overall Length (including extension deck): 4.45 m (total working length)
Stowed Height (Rails Up): 2.74 m
Stowed Height (Rails Down): 1.95 m
Platform Width (Inside Dimension): 1.44 m
Platform Length (Inside Dimension): 3.38 m
Extension Deck (Roll Out): 4.67 m
Extension Deck: 1.07 m
Ground Clearance: 0.20 m
Wheelbase: 2.16 m
Weight: 4,818 kg
Gradeability: 35%
Turning Radius (Inside): 1.91 m
Turning Radius (Outside): 4.19 m
Lift Time (With Rated Load): 60 sec
Lower Time (With Rated Load): 42 sec
Drive Speed (Stowed): 5.6 km/h
Drive Speed (Raised): 0.5 km/h
Maximum Drive Height: Full height
Capacity (Overall): 363 kg
Distributed Capacity (Main Platform): 227 kg
Distributed Capacity (Extension Deck): 136 kg
Maximum # of Persons: 3 - 0 m/s wind rating
Wind Rating: 2 - 12.5 m/s wind rating
Tire Type: Non-marking foam-filled
Tire Size: 26 x 12
Hydraulic Reservoir: 68 L
