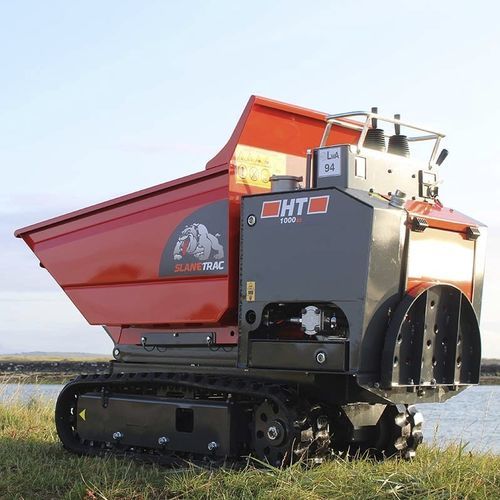

Tracked dumper HT1000s

diesel enginerear unloadingcompact

The Slanetrac HT1000s Diesel Track Dumper is hydraulically driven and comes with braked drive motors. This compact Track Dumper has a maximum width of 750mm and a length of 1900mm.It can turn on its own length offering greater accessibility and maneuverability in urban areas or areas where larger plant can’t gain access. Complete with hi tipping capacity; the Slanetrac HT1000s Diesel Track Dumper offers a tipping height of 1300mm, and easily tips into skips. With a very low ground pressure and rubber tracks, the Slanetrac HT1000s offers minimum ground damage, while excellent gradability and stability ensure safe operating of the dumper. Powered by a Kohler KDW702 16.5hp (12.3kw) electric start, water cooled engine; this robustly built Track Dumper has a load capacity of 1 ton. With a very low ground pressure and rubber tracks the Slanetrac HT1000 offers minimum ground damage while excellent gradability and stability ensure safe operating of the dumper. Features - Kohler KDW702 Engine - High Tip - Electric Start - Narrow Access – 750mm Wide - Joystick Control - 1 Tonne Capacity - Unladen Weight: 770kg Technical Data - Engine: Kohler KDW702 - Power: 16.5hp (12.3kw) - 2 Cylinder Water Cooled Engine - Starting: Electric - Hydraulic Drive - Low on Emissions & Low on Noise - Speed: 4.5 km/h - Gradability: 36% – 50% - Operating Pressure: 2440 psi (170 bar) - Max Pump Flow: 36 ltr/min - Fuel Tank: 6.0 ltr - Hydraulic Oil Tank: 30 ltr - Load Capacity: 1 ton - Unladen Weight: 770kg - Contact Pressure: 0.30kg/cm² - Laden Weight: 1770kg - Safety Device: Automatic Engine Roll Over Cut Out
