Multi-axis positioning controller EMS 2D
electronicclosed-loopembedded

multi-axis positioning controller
multi-axis positioning controller
Add to favorites
Compare this product


Characteristics

Number of axes
multi-axis
Technology
electronic, closed-loop, embedded, integrated
Product applications
for micro-positioning systems, OEM

Description

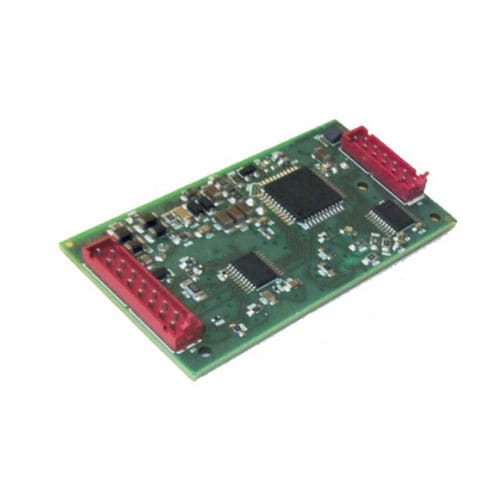

Board-level controller for integration into existing control electronic designs. The EMS product line consists of an OEM single board controller which was exclusively designed for integration into existing electronics. Because of its small size, it is perfectly suited to be integrated into your OEM product. The small footprint and the available TWI interface make it the best choice for your control electronics design. Compatible Stages All SmarAct stages with stick-slip drives Channels 2 Sensor Support L, I Power Supply 5 ... 7 V, 4 W/ 12 ... 24 V, 12 W Stage Interface Micromatch PC Interface Two wire interface (TWI) Scalability Maximum 8 via TWI (depending on connected PC) Voltage Range, max. Current - 0 ... 60 V, 250 mA Dimensions [mm] - 58 x 32
