Multi-axis motion controller SCU

USBRS-232closed-loop

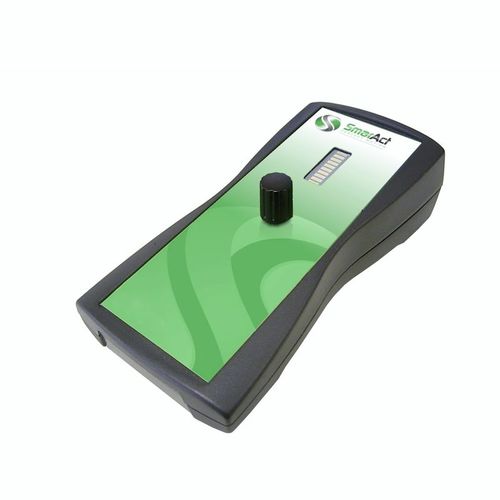

Control system with one or three channel drivers. Available as OEM boards or as integrated handheld controllers. The SCU product line of control systems includes one and three channel drivers to control stick-slip piezo stages with optional support for closed-loop positioning. All control systems of this product line are equipped with an USB or RS232 interface. USB devices are shipped with software development kits to guarantee easy and fast integration into your setup. As an alternative, all devices can be controlled using a simple ASCII command set. Besides the availability as fully integrated handheld controllers for desktop usage, the control system is also available as an OEM single board controller for integration into your product. Compatible Stages - SMARSLIDE stages with stick-slip drives Number of Channels - 1, 3 Feedback Loop - closed-loop, open-loop Sensor Options - L, I Enclosure Type - Hand Control Module, OEM single board controller, tabletop enclosure Manual Control Features - Control knob and LED array, Control knobs, joystick and LCD Stage Interface - 1x DSUB 15, 1x DSUB 26HD PC Interface - USB, RS232 Software and Drivers - Drivers for Windows and Linux, LabVIEW SDK Power Supply - 12 V, 48 W
