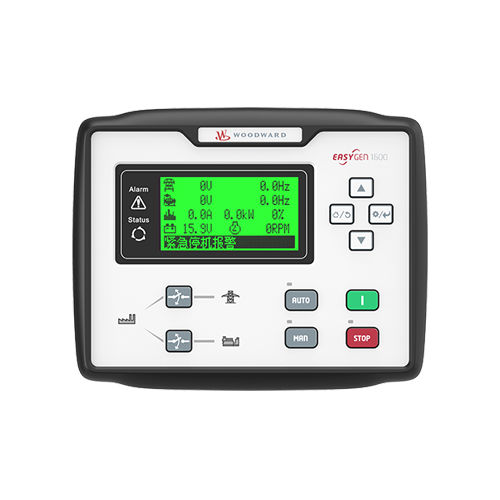

RS485 control module easYgen series

temperature

has all functions of easYgen-600 as well as automatic mains failure function (AMF), particularly well suited for single automation systems that include mains and generator. easYgen-600 is intended to be used for single automation systems, auto start/stop of the unit are performed with the help of remote signal. Key characteristics With ARM-based 32-bit SCM, highly integrated hardware, high reliability level Multilingual interface (English, Chinese, Spanish, Russian, Portuguese, Turkish, Polish, and French) making commissioning convenient for factory personnel Improved LCD wear-resistance and scratch resistance due to hard screen acrylic Silicon panel and pushbuttons for better operation in high-temperature environment RS485 communication port enabling remote control, remote measuring, remote communication via ModBus protocol Equipped with CAN bus port to communicate with J1939 genset. Monitoring frequently-used data such as water temperature, oil pressure, speed, fuel consumption and so on of ECU machin, and additionally also control start, stop, raising speed, and speed droop via CAN bus port Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2- wire, and 2-phase 3-wire systems with voltage 120/240 V and frequency 50/60 Hz easYgen-1600 only: Collects and shows 3-phase voltage, current, power parameter, and frequency of generator and additionally 3-phase mains voltage. Mains Generator Line voltage (UAB, UBC, and UCA) Line voltage (UAB, UBC, and UCA) Phase voltage (UA, UB, and UC) Phase voltage (UA, UB, and UC) easYgen-600 only: Collects and shows 3-phase voltage, current, power parameter and frequency of generator. Generator Line voltage
