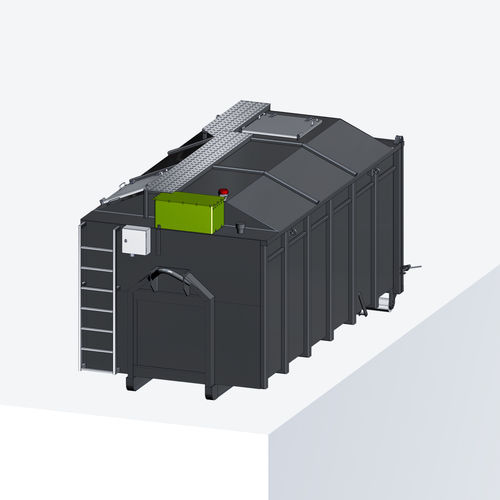

The SmartTEH Ash Container is designed for collecting, storing, and transporting hot and cold ash, slag, wood chips, and other materials. It features a closed-type metal case with an openable cover, three control hatches on the sides, and a loading hole with a lifting hook on top. The container includes an ash leveling system with a screw conveyor, ensuring even distribution within the container, powered by a motor reducer. It is particularly suitable for heat/power plants using wood chips as an energy source and can be transported using a truck with a hook-lift system.
SPECIFICATIONS:
- Weight: Approximately 2.8 tons.
- Dimensions: Length 4800mm, Width 2450mm, Height 2400mm; Volume 16m².
- Loading/unloading rails distance 1060mm.
- Bearings withstand temperatures up to 300°C.
- Ash discharge doors are heat-resistant up to 300°C.
- Wall width 3mm, floor width 4mm.
- Reinforced with seven-strength ribs.
- External edges distance 2200mm; Wheel diameter 180mm.
- Ash-leveling screw grader conveyor along the container length.
- Hermetic trapdoors and loading hatch (customizable).
