Volumetric flow regulator RVP-R-SL
for airstainless steelautomated

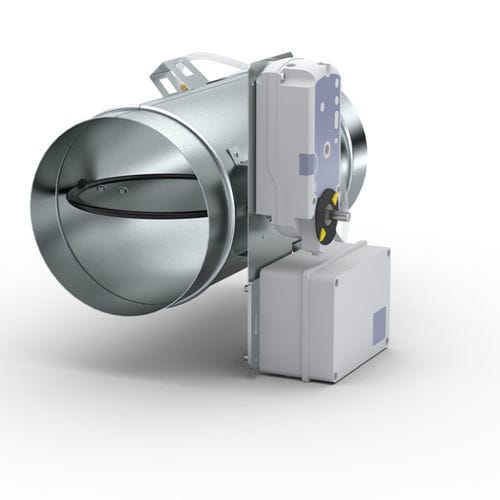

Volumetric flow regulator - RVP-R-SL - SMAY sp. z o.o. - for air / stainless steel / automated

Add to favorites

Compare this product

Characteristics

Technology

volumetric

Fluid

for air

Other characteristics

stainless steel, automated

Flow rate

Min.: 0.1 m³/s
(3.53147 ft³/s)

Max.: 1.2 m³/s
(42.3776 ft³/s)

Pressure

Min.: 50 Pa
(0.007 psi)

Max.: 1,000 Pa
(0.145 psi)

Nominal diameter

Min.: 100 mm
(3.937 in)

Max.: 500 mm
(19.685 in)

Description

VAV variable flow regulator with round cross-section, operating from 1 m/s and equipped with the actuator and metering panel. Specifically for the SmayLab system. Intended Use VAV regulators are used for the automatic control of airflow in ventilation systems in laboratories and clean rooms covered by the SmayLab system. RVP-R-SL regulators can be made in two versions that differ in operating speed. For the standard version the shift time of the regulator damper is 150 seconds, while for the fast version it is only 3 seconds. Design The housing and shutter of the regulator damper are made of galvanised steel sheet or, if a special order, of 1.4301 stainless steel. The damper baffle is equipped with a rubber seal, which Dimensions ensures air tightness when the shutter is fully closed. The regulator, in accordance with PN-EN1751, meets the requirements of B3 (for Dn 100-125 mm) or C3 (for Dn 160-500 mm) air tightness class. Optionally, the RVP-R-SL are fitted with thermal and noise insulation – RVP-Rt-SL.
