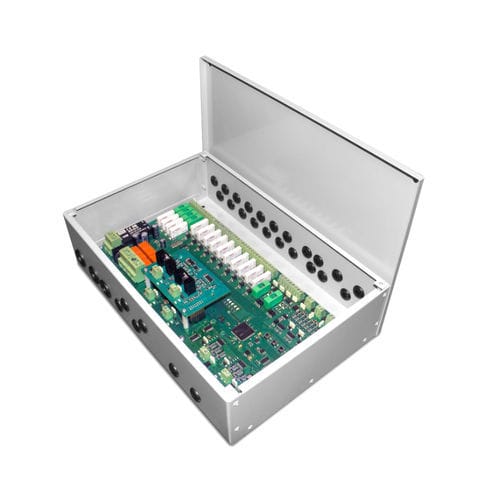

Power control panel N-0200

multi-channelautomatic

The N-0200 is a control panel that controls fire protection system components such as fans, smoke vents, fire dampers and others. As an option, it can be linked to smoke detectors. Intended Use The N-0200 fire protection system control panel is intended to control the mechanical smoke exhaust system. It has a ventilation function and offers the possibility of connection to a weather station, as well as the ability to control the damper so that it serves as a roof hatch. It can also be used to control, receive and send signals to/from cooperating devices compatible with the N-0200 control panel. The control panel can receive initiating signals from the fire alarm system and other fire safety systems. Triggering of the system is also possible by the use of its own fire hazard detection. The N-0200 makes it possible to connect the monitoring lines, where the following items are located: smoke detectors for automatic smoke (smoke and heat) detection, as well as manual smoke vent buttons for the commencement of a control and monitoring procedure for fire protection devices by someone who detects a fire. The N-0200 is adapted for installation inside power supplies of fire protection devices that are compliant with the standard EN 12101-10 “Power Supplies”. The N-0200 does not have its own source of power, nor does it have two separate supply paths. Therefore, it cannot be installed outside the cooperating power supply unit.
