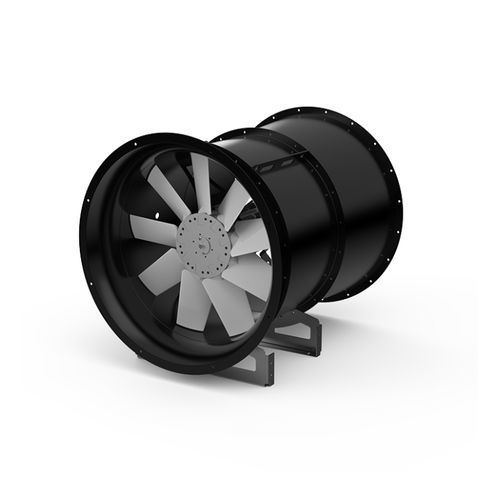

Axial fan SEF(R) series
exhaustACmotor

Axial fan - SEF(R) series - SMAY sp. z o.o. - exhaust / AC / motor
Axial fan - SEF(R) series - SMAY sp. z o.o. - exhaust / AC / motor
Axial fan - SEF(R) series - SMAY sp. z o.o. - exhaust / AC / motor - image - 2
Add to favorites
Compare this product

Characteristics

Configuration
axial
Function
exhaust
Supply voltage
AC
Applications
motor
Other characteristics
jet
Air flow

Max.: 145,000 m³/h
(5,120,626.675 ft³/h)

Min.: 5,000 m³/h
(176,573.334 ft³/h)

Diameter

Max.: 1,400 mm
(55.118 in)

Min.: 630 mm
(24.803 in)

Rotational speed

1,000 rpm, 1,500 rpm, 3,000 rpm
(6,283 rad.min-1, 9,425 rad.min-1, 18,850 rad.min-1)

Description

F400 – fire resistance rating up to 400°C for 120 minutes Operating parameters: Very high energy efficiency Ability to work at a frequency of 60 Hz – enhanced operating parameters Minimised pressure loss at the outlet due to the use of a diffuser Low power consumption Maximum motor power – 55 kW Optimum efficiency up to 80% Also available as a tunnel fan – JET FAN SEF(R) Dual action operation possible (the fan can operate in domestic mode within the range of 15–50 Hz)
