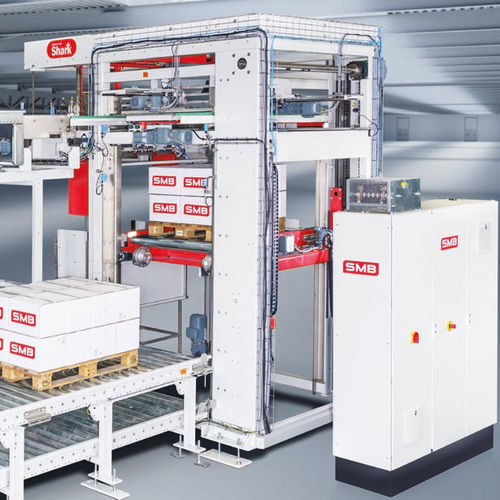

Layer palletizer Shark

palletautomatic

Loads every pallet in a space-saving, product-friendly and dimensionally stable manner Innovative Layer Palletizer Whether it's a turning station, a conveyor, turning and sliding unit, turnstile, turning clamp or turning pin: with the help of a wide range of techniques, the Shark can palletize all types of cartons, trays and shrink-wrapped bundles. The focus is always on loading the pallets gently. Together with the new setting pattern generator, the palletizer and turning system ensure optimally aligned, space-saving and dimensionally stable loading. The layer palletizer can be optionally expanded and can be optimally connected to other devices, thus offering a wide range of possible applications. Product Information - Possible pallet formats (LxWxH): 800 - 1,550 x 600 - 1,250 x 1,600 - 2,400 mm, can be customized in size and performance as needed - Up to 35 containers per minute - Interleaf sheet applicator operating from the pallet or from the movable cardboard magazine - Pallet transport: single or double-deck conveyor technology (FH 500/750 mm) - Attached empty pallet gripper magazine (mounted directly on the base machine) - Energy-saving potential due to lower moving mass ratios of the individual components (approx. 1.7 to 2.2 kW/h) Shark Performance Range - 20-35 cycles or containers/min. - Sheet applicator working from the rigid magazine; movable 2 and 3 cardboard magazine turning station; turnstile; rotating clamp (sack palletizer); FDV (conveyor turning and sliding unit), rotating pin - Remote maintenance via VPN; mobile card and optionally via EWON router (mechanical release
