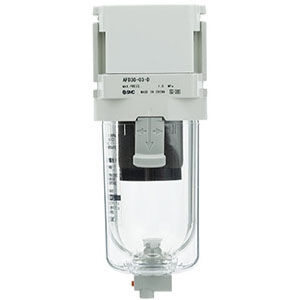

Oil mist separator AFD seriescoalescing
Add to favorites
Compare this product
Characteristics
- Separated substance
- oil mist
- Technology
- coalescing
- Flow
120 l/min, 240 l/min, 600 l/min
(31.701 us gal/min, 63.401 us gal/min, 158.503 us gal/min)- Filtration size
0.01 µm
- Weight
90 g, 190 g, 380 g, 430 g
(3.17 oz, 6.7 oz, 13.4 oz, 15.17 oz)
Description
The AFD-D series of modular micro mist separators (coalescing filters) brings a modern appearance to SMC's line of filters while maintaining the high performance of our other series. These 0.01 μm remove most measurable particles and further reduce the oils carried over from the compressor. The transparent bowl guard on the size 30 and larger provides improved environmental protection as well as full view of the bowl contents. The AFD-D is currently available in three body sizes with more to come in the near future.
Mounting interchangeable with existing product
Polycarbonate, nylon and metal bowl options
Rc, NPT, or G threads
