Membrane compressed air dryer IDG series
two-stage

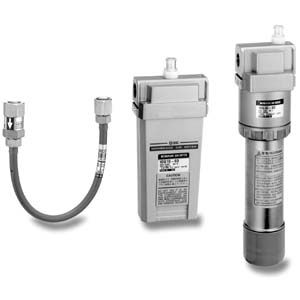

Membrane compressed air dryer - IDG series - SMC Corporation of America - two-stage

Add to favorites

Compare this product

Characteristics

Technology

membrane

Number of stages

two-stage

Capacity

Max.: 1,190 l/min
(314.36 us gal/min)

Min.: 2.5 l/min
(0.66 us gal/min)

Working pressure

Max.: 1 MPa

Min.: 0.3 MPa

Ambient temperature

Max.: 55 °C
(131 °F)

Min.: -5 °C
(23 °F)

Weight

Max.: 1.8 kg
(4 lb)

Min.: 0.1 kg
(0.2 lb)

Dew point

Max.: -15 °C
(5 °F)

Min.: -60 °C
(-76 °F)

Description

Membrane air dryer series IDG is available in a single unit or combination unit style. IDG/M models combine a mist separator and micro mist separator with a single unit. IDG/V models combine a regulator with the IDG/M model. Options available include one-touch fitting exhaust of purge air. If purged air is not exhausted around membrane air dryer, air is exhausted with tubing away from its dryer. •Single unit style •10 sizes available •Port sizes: 1/8" to 1/2"
