Oil-free Venturi ejector ZK2 series
single-stagecompact

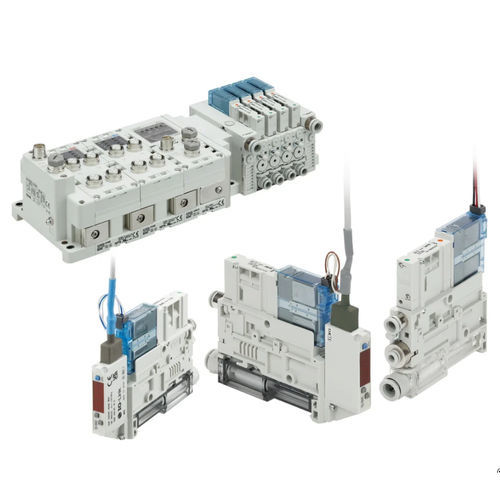

Oil-free Venturi ejector - ZK2 series - SMC PNEUMATIC - single-stage / compact
Oil-free Venturi ejector - ZK2 series - SMC PNEUMATIC - single-stage / compact
Oil-free Venturi ejector - ZK2 series - SMC PNEUMATIC - single-stage / compact - image - 2
Oil-free Venturi ejector - ZK2 series - SMC PNEUMATIC - single-stage / compact - image - 3
Oil-free Venturi ejector - ZK2 series - SMC PNEUMATIC - single-stage / compact - image - 4
Add to favorites
Compare this product

Characteristics

Lubrication
oil-free
Number of stages
single-stage
Other characteristics
compact
Ultimate vacuum

Max.: 101,000 Pa
(14.65 psi)

Min.: -100,000 Pa
(-14.5 psi)

Flow rate

Max.: 90 l/min
(23.78 us gal/min)

Min.: 24 l/min
(6.34 us gal/min)

Power

0.4 W
(0 hp)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: -5 °C
(23 °F)

Noise level

Max.: 76 dB

Min.: 46 dB

Weight

Max.: 155 g
(5.47 oz)

Min.: 129 g
(4.55 oz)

Description

・Compatible with ejector systems and vacuum pump systems ・Energy saving ejector 　Air supply is cut-off when vacuum is reached. 　Air consumption: 93% reduction (Under SMC’s measurement conditions) ・More efficient ejector: Suction flow increased by 50% (Compared to other SMC 1-stage ejectors) ・Energy saving efficiency: 93% reduction ・Improved low noise and suction flow by adoption of a high-noise 　reduction silencer ・Supply valve: N.O. specification: ZK2mA-X188: Single Unit, ZK2mA-X211: For Manifold
