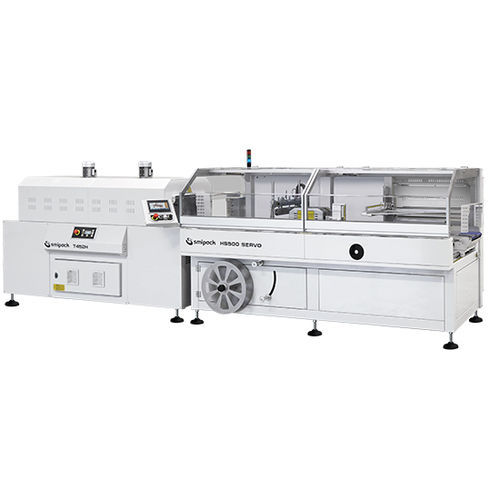

Continuous side-sealer HS500 SERVO
servo-drivenelectricwith shrink tunnel

continuous side-sealer
continuous side-sealer
continuous side-sealer
continuous side-sealer
continuous side-sealer
continuous side-sealer
continuous side-sealer
continuous side-sealer
Add to favorites
Compare this product


Characteristics

Operation
servo-driven, electric
Specifications
continuous, with shrink tunnel, shrink packer

Description

The “Full Electric” automatic packers with continuous sealing system from the HS series, designed according to the most advanced concepts of Industry 4.0, are characterized by a great quality/price ratio and modularity. In fact, all the models of this range can be supplied with or without shrink tunnel. The HS series with continuous sealing and intermittent or box motion cycle can handle Polyolefin and Polyethylene, Polypropylene centerfolded or flat film with film folder PX, and is suited to meet outputs of up to 7200 packs/hour and 9000 packs/hour with customized solutions. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 8500 W • Sealing bar : 520 mm • Maximum pack height : 200 mm • Speed of conveyors : 5 - 40 m/min • Speed up to : 7200 pph ** • Maximum size of film reel : 600 - ø 350 mm • Machine size : 2720 x 1875 mm • h 1505 - 1665 mm • Machine net weight : 830 Kg • Usable Films: Polyolefins and Polyethylene : up to 30 µ Technical data : • Continuous FULL ELECTRIC 4.0 packer with 3 belts managed by brushless servomotor • Continuous working cycle (box motion) by cam electronics self-configuring • Side sealing system by friction with hot blade • Continuous motion cross sealing bar with PTFE-coated sealing blade controlled by brushless servomotor • FLXMOD® control system equipped with: • Operator Interface with Panel PC and 7” full-colour touch screen display with PLC user-friendly • Power and control section consisting of: • drivers and inverters for each motor • IN/OUT control modules with 16 digital inputs/outputs • analog inputs control modules • thermocouple-reading control modules
