Automatic filler-sealer SF 200, SF 400
linearfor liquids

automatic filler-sealer
automatic filler-sealer
automatic filler-sealer
automatic filler-sealer
automatic filler-sealer
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
linear
Product applications
for liquids
Throughput

Min.: 120 p/min

Max.: 480 p/min

Description

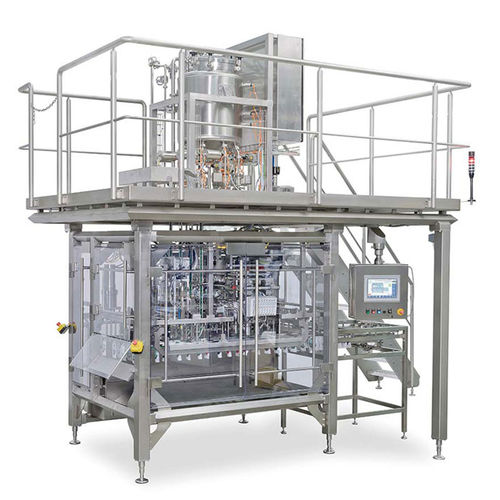

Horizontal working fill and seal pouch-packaging machine with 2 to 4 lanes for prefabricated flat or stand-up pouches with centerspout. By filling through the spout a higher filling level in the pouch is realizable. Applications: Liquid and pasty products of all kinds. - Flexible possible applications - Hygienic execution, easy to clean - Central operation and visualization via touch panel - Concurrent filling heads (with integrated pouch evacuation) for longer pouch filling time of 0.5 to 2.5 seconds at 60 cycles/minute - Fillings up to 100 ml also possible by intermitted mode: Up to 70 cycles/minute realizable - Servomotoric spout cap screwing with two control parameters: torque and screw-in depth - Easy to maintain through optimal accessibility to all workstations - Very small floor space requirement: Control cabinet integrated into the machine; product and cap feeding from walk-on platform above the machine - Dosing equipment: Dosing pumps, flow meters
