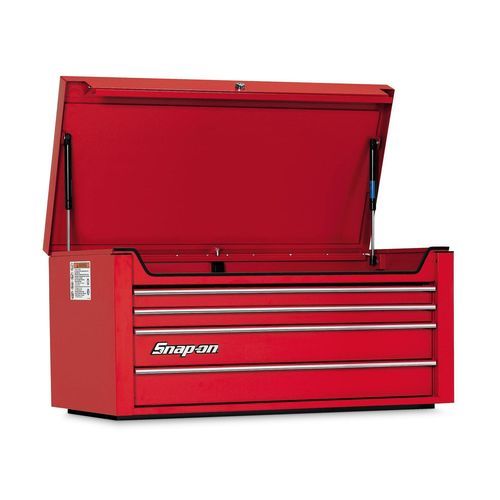

Mechanic toolbox KRA4114 series

with drawerlockable

Overview
The Heritage Series 4-drawer top chest provides secure, organized storage for tools and components in industrial workshops and service environments.

Features

• Lock 'N Roll® system prevents drawers from drifting open during unit movement
• Gas-assisted hydraulic lifts for safe opening and controlled closing
• Interchangeable drawers configurable to specific workflows
• Double-wall construction prevents an outer dent from affecting drawer operation
• High-security tubular interchangeable locks
• Available colors: Red (PBO), Gloss Black (PC), Royal Blue (PCM), Electric Orange (PJK)

Warranty
Field repairable. See repair part warranty. Repair in the field. The item will be audited at the replacement processing center.

Specifications
Depth, inches (mm): 19-13/16 (503)
Width, inches (mm): 40 (1,016)
Country of Origin: USA
No. of Drawers: 4
Height, inches (mm): 19-7/16 (494)
Net Weight, lb (kg): 183 (83)
Shipping Weight, lb (kg): 213 (97)
Top Compartment Dimensions, inches (mm): 39-7/8 W x 18-3/4 D x 4-3/4 H (1,013.6 W x 475.5 D x 119.9 H)
Cubic inches (cm³): 9,746 (159,710)
Square inches (cm²): 3,178 (20,500)

Technical specifications

• Depth: 19-13/16 in (503 mm)
• Width: 40 in (1,016 mm)
• Height: 19-7/16 in (494 mm)
• No. of Drawers: 4
• Net Weight: 183 lb (83 kg)
• Shipping Weight: 213 lb (97 kg)
• Top Compartment: 39-7/8 W x 18-3/4 D x 4-3/4 H (1,013.6 x 475.5 x 119.9 mm)
• Cubic Capacity: 9,746 in³ (159,710 cm³)
• Surface Area: 3,178 in² (20,500 cm²)
