OBD2 diagnostic tool EEHD754W
USBfault code readingclear fault codes

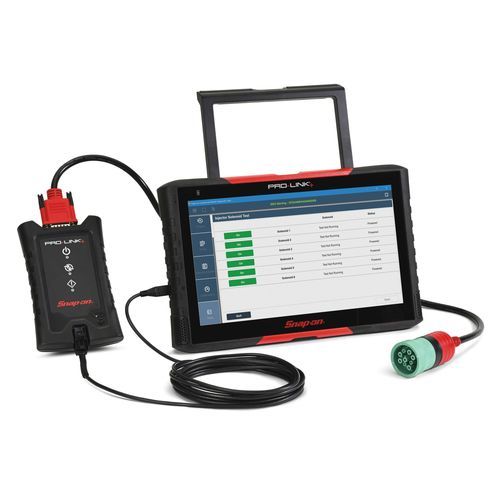

OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes - image - 2
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes - image - 3
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes - image - 4
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes - image - 5
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes - image - 6
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes - image - 7
OBD2 diagnostic tool - EEHD754W - Snap-on - USB / fault code reading / clear fault codes - image - 8
Add to favorites
Compare this product

Characteristics

Connectivity
USB, OBD2
Main functions
ECU programming, fault code reading, DTC, VIN reader, real time monitoring, clear fault codes
Systems analyzed
engine, ECU, transmission, ABS, break system
Applications
for trucks, for heavy trucks, for commercial vehicles
Domain
for the automotive industry
Other characteristics
multibrand, wireless, data acquisition

Description

Overview
  • Comprehensive diagnostic and repair functions for heavy-duty fleets: auto ID, active/inactive fault codes, data graphing and verification tests.
  • 200+ special tests and 600+ programmable parameters to verify components and configure replacement parts or vehicle operation.
  • Windows®-based OS supporting printing, external displays, optional inputs and internet connectivity for documentation and information lookup.
  • Extensive component library with thousands of photos and fault-specific wiring diagrams (option to view full diagrams).
  • 12\" capacitive color touchscreen for improved readability at multiple angles and visibility indoors or outdoors.
  • Integrated camera with light for inspections and evidence capture.
  • Industry-standard vehicle communication interface with both wired and wireless compatibility; includes 9-pin and 16-pin adaptors.
  • Designed for heavy-duty workshop environments with durable construction and long battery operation (approx. 9 hours).


Coverage Included
  • Detroit Diesel®: DDEC Suite 6, 10, 13, 15, 17, 20 V4; DDEC Suite 2, 3, 4, 5 V2; MBE; DTNA Transmission.
  • Freightliner®: Body and Chassis coverage.
  • Caterpillar®: CAT ACERT and CAT electronic engines.
  • International®/Navistar®: Navistar® MaxxForce®, International®, Navistar® body and chassis.
  • PACCAR; Cummins®; Volvo®/Mack®; HINO; PSI.
  • Allison® Transmission: CEC1; WTEC 1k/2k, 3k/4k; GEN V, GEN IV.
  • ABS and major brake systems: WABCO®, Bendix®, Eaton®, Wabash®, Haldex®.
  • LMT 2024 and non-proprietary standards: HDS J1708, HDS J1939; OBD-II/EOBD for light/medium-duty trucks.


Package Contents
  • PRO-LINK®+ Main Unit with screen protector.
  • Wireless VCI (vehicle communication interface).
  • 9-pin and 16-pin vehicle adaptors.
  • Stylus, USB-C cable and charging adaptor.
  • 6 months of services included.


Warranty
  • Vendor Repair Center coverage; vendor repair or replace options depend on supplier. Product eligible for repair at an authorized Vendor Repair Center.


Additional Notes
  • Specifically engineered for heavy-duty shop use with interfaces and features to support broad manufacturer and system coverage.


Technical specifications
  • Model (internal item code): EEHD754W.
  • Country of origin: TWN (Taiwan).
  • Display: 12\" capacitive color touchscreen.
  • Battery life: approximately 9 hours.
  • Integrated camera: camera with light for inspections and documentation.
  • Connectivity: industry-standard wired and wireless vehicle communication interfaces included (wireless VCI plus 9-pin and 16-pin adaptors).
  • Software: Windows®-based OS with printing, optional inputs and internet access capabilities.
  • Diagnostics: auto ID, code reading for active/inactive faults, data graphing, 200+ special tests, 600+ programmable parameters.
  • Includes: main unit, screen protector, 6 months of services, wireless VCI, vehicle adaptors (9/16 pin), stylus, USB-C cable and charger.
  • Intended use: heavy-duty vehicle diagnostics, repair verification and programming support.
