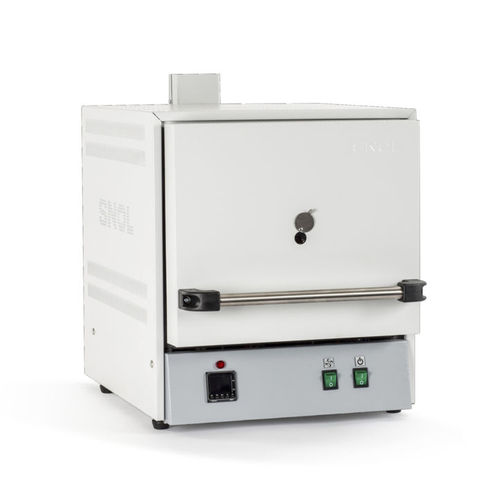

Sintering furnace 3/1100 LHM21

ashingchamberelectric

SNOL 13/1100 ashing furnace with vacuum-formed ceramic fiber chamber is designed for ashing and burn-off processes up to 1100°C. Fan-assisted chimney permits the elimination of smokes from the chamber during the process. BASIC MODEL • One piece high thermal efficiency, vacuum-formed ceramic fiber chamber • Heating elements, embedded in a vacuum formed fiber, are inside four walls of the chamber • Fan-assisted chimney for smoke and humidity extraction • Continuous air change in the chamber • Door opens upwards • Door safety interlock switch • Microprocessor – temperature controller • Outside casing – metal sheet, powder painted grey • High quality, ecological thermal insulation material • Low electric power consumption • Short heating up/cooling down period • High degree of accuracy • 1 year warranty. OPTIONS • Additional ceramic hearth plates • Buzzer • Protection against overheating • Data recorder • Data communication/USB • Calibration of temperature measurement system • Additional 1 year warranty Technical data Rated power not more than kW 1.8 Rated supply voltage V 230 Rated frequency Hz 50 Number of phases – 1 Working chamber material – Fiber muffle Maximum heating- up time (without charge) Min. 50 Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than ± °C 1 Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than ±°C 10
