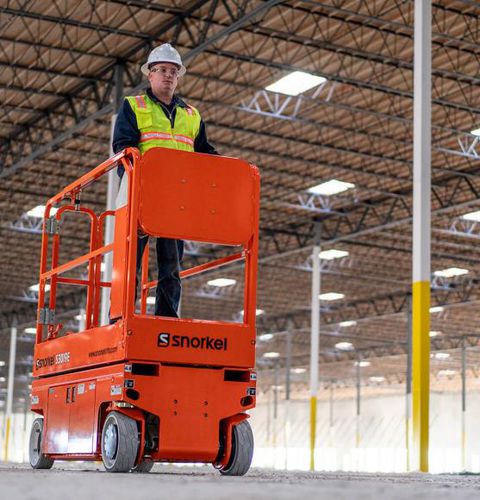

Self-propelled scissor lift S3019E

electriccompact

The Snorkel S3019E self-propelled electric scissor lift stacks the deck. This all-electric lift features a sunken scissor stack that stows inside the chassis, offering a low step-in height. Compact and nimble, its slim design easily fits through doorways and on passenger elevators. Specifications Max. working height 25 ft Max. platform height 19 ft Platform size (stowed) 24 in x 64.5 in Platform size (extended) 24 in x 100.5 in Deck extension length 36 in Overall length 75 in Overall width 30.5 in Stowed height 69.1 in Ground clearance (stowed) 3 in Ground clearance (elevated) 0.6 in Platform capacity (SWL) 550 lbs Max. drive height 19 ft Max. wind speed 28 mph Max. drive speed (elevated) 0.5 mph Max. drive speed (stowed) 1.5 mph Raise / lower time 30 / 44 seconds Gradeability 25% Inside turning radius 0 in Outside turning radius 69.5 in Tires 12.75 in x 4 in non-marking solid rubber Controls Proportional Drive system 2 wheel electric drive Power source 24V DC battery electric Charger 90 - 240V, 25 amp Weight 3,500 lbs
