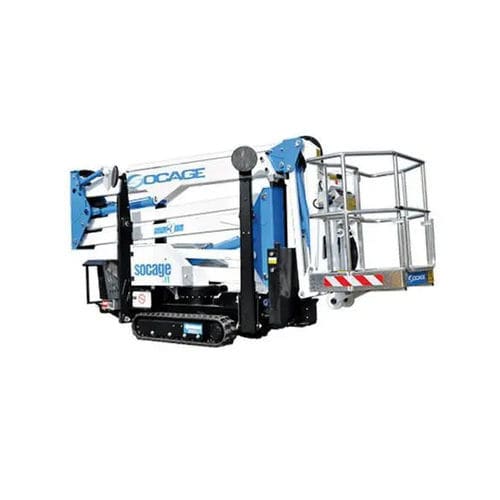

Self-propelled spider lift SPJ315

electricdiesel engineindoor/outdoor

SPJ315 is a spider boom lift with a maximum working height of 15 m, and a maximum lateral reach of 7 m. It is capable of lifting 225 kg (2 operators + material) without limitations in the entire work area; it includes double articulated aerial part with hydraulic jib for greater versatility. This aerial platform is equipped as standard with fully hydraulic controls for the movements of the aerial part and with radio remote, for greater comfort and operator safety in controlling the movement, stabilization and speed of the Honda 13CV engine as standard. Possibility of mounting a diesel engine. Sustainable platform with 0% emissions, bio-energetic, in addition to the gasoline engine, I which incorporates a 230V electric motor that allows working without emissions, essential in certain closed spaces such as churches, airports or factories. The most compact in aerial platforms The spider boom lift SPJ315 has very reduced weight and dimensions, only 78 cm wide in the translation phase (with the basket removed), it is equipped with extendable track systems for greater stability in the translation of the machine. The 350º rotation of the aerial part and the hydraulic jib together with the double articulated arm allows a large work area. All this makes it one of the lifting baskets with the best reduced dimensions / performance ratio on the market. • White non-marking tracks • Aluminum basket: dimensions 1400 x 700 x 1100 mm • Narrow hydraulically expandable undercarriage (780 mm/1100 mm) • Electric hour counter • Gasoline engine Honda 13 cv • Socket 230V in the basket
