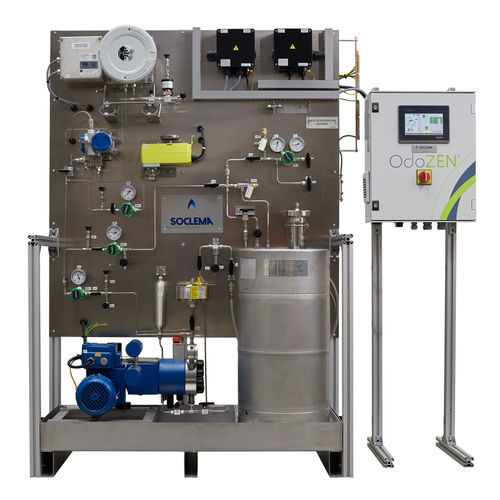

Gas odorizing unit OdoZEN High-Flow

OdoZEN is a patented odorization system for natural gas. It is particularly suited to renewable gases such as biomethane. This high-precision system is responsive to sudden variations in pressure and flow, and can cover a wide injection range. Technical Specifications Operating ambient temperature 0 - 55°C Maximum injection pressure 70 barg Flow rate of gas to be odorized 5 - 1000 Nm3/h THT injection setpoint 25 mg/Nm3 Material - Stainless steel 316 - Perfluorocarbon, Teflon & Viton Power supply 230 volts AC single-phase (rated power 2000W) Communication protocol Modbus Ethernet TCP/IP (exchange table supplied) Input/Output 4-20mA, digital Features - Odorant injection regulating valve controlled via mass flowrate measurement. - "Closed loop" odorant circulation. - Stainless steel piston pump with Teflon double membrane. - Automatic or manual operation via controller. - Digital touchscreen interface. - System-specific injection probe connected to the skid. - ATEX zone 1 compliant. Benefits - Immediate response to variations in flowrate and/or pressure. - No under or over dosing of odorant. - Steady and accurate control of the odorant injection. - No risk of pudding at injection point. - Turnkey, self-contained and compact unit. - Mobile system available on request.
