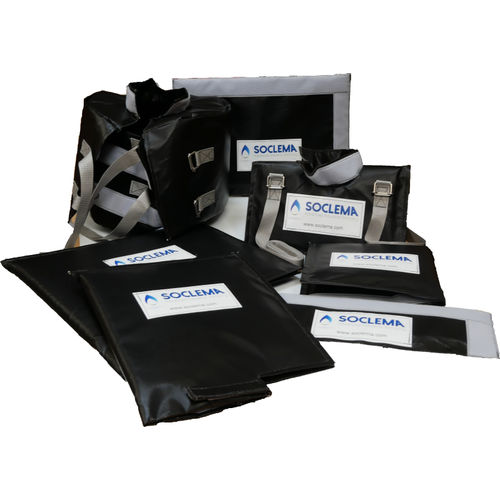

Removable insulation blanket SOCPROTHERM

for pipesfor valvesfor flanges

Insulated jackets designed to isolate the area around the sampling point, including valves, sampling probes, regulators and all sampling equipment located directly at the sampling point. This insulation prevents the build-up of condensation and the ensuing problems. - Technical Specifications - Maximum temperature: - Foam insulation: 150°C - Jacket: 200°C - Minimum temperature: -25°C - Maximum fluid temperature: 120°C - Material: - ATEX antistatic PTFE fabric jacket - EPDM elastomer foam insulation, 13 cm thick - Features - Insulated jackets - Spare parts available: - SOCPROTHERM-TYPE-2-RALL strap - Additional products: - TPE electric trace tube - TRACEPAK - Documentation available: - Data sheet SOCPROTHERM (FR) - SOCPROTHERM data sheet (EN) - SOCPROTHERM plant (FR) - SOCPROTHERM plant (ENG) - SOCPROTHERM-10 installation (FR) - SOCPROTHERM-10 installation (EN) - Characteristics / Technical Specifications - Maximum temperature: Foam insulation 150°C, Jacket 200°C - Minimum temperature: -25°C - Maximum fluid temperature: 120°C - Material: ATEX antistatic PTFE fabric jacket, EPDM elastomer foam insulation (13 cm thick)
